BRY-FLOOD-SC-30W-GRY-3000K-SNS-IP54-LED FLOODLIGHT

BT60-23002

BRY-FLOOD-SC-30W-GRY-3000K-SNS-IP54-LED FLOODLIGHT - 1

BRY-FLOOD-SC-30W-GRY-3000K-SNS-IP54-LED FLOODLIGHT - 2

BRY-FLOOD-SC-30W-GRY-3000K-SNS-IP54-LED FLOODLIGHT - 3

BRY-FLOOD-SC-30W-GRY-3000K-SNS-IP54-LED FLOODLIGHT - 4

Family Products

General Characteristics

Model No

BT60-23002

Main Family

Outdoor Lighting

Sub Family

LED Floodlight

Type

Flood

Body Color

Grey

Lamp Shape

Directional

Dimmable

Not-Dimmable

Light Source

LED

Warranty

2 years

Class

Class I

IP

IP54

IK

IK06

Lamp Characteristics

Wattage

30 w

Color Temperature

3000K

Quse Lumen

2550 lm

Color Rendering Index (CRI)

>70

Energy Efficiency Level

F

Beam Angle

120° Degrees

Color Category

Warm White

Electrical Characteristics

Lifetime (at 2.7 h/day)

20000 h

Voltage

220-240V

Power Factor

>0,9

Material

Aluminium

Working Temperature

-20 C-40 C

Frequency

50-60 Hz

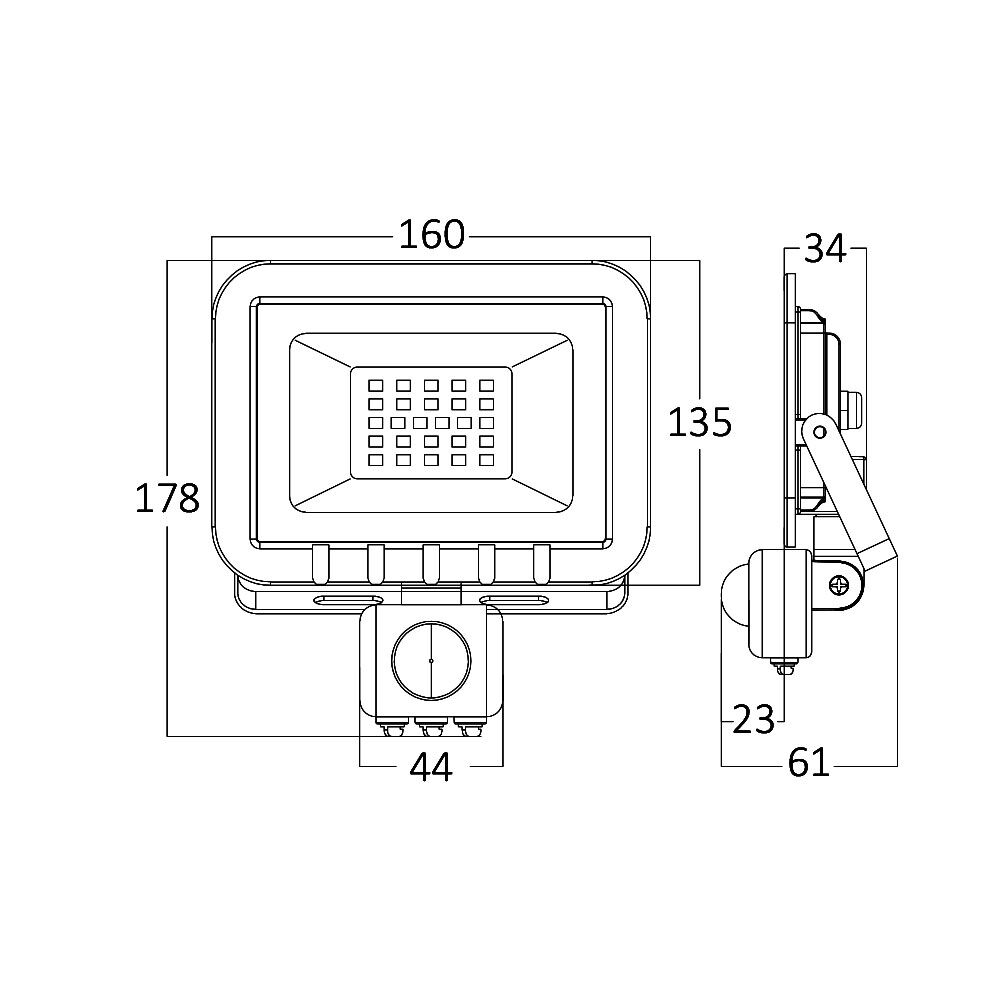

Lamp Dimensions & Weight

P. Length

160 mm

P. Width

34 mm

P. Height

178 mm

Weight

379 gr

Sensor Informations

Sensor Type

Motion

Detection Distance

2m-8m

Detection Speed

0,6-1,5m/s

Installation Height

1,8m-2,5m

Time Delay

10sec-7min

Lux

10-2000 lux

Package Informations

N.W.

7,58 kgs

G.W.

9,66 kgs

PCS/CTN

20 pcs

Length

340 mm

Width

340 mm

Height

400 mm

EAN

5949097707322

CE-CERTIFICATE EC-DECLERATION EMC-TEST-EBO2104161-E3455 LVD-EST-EBO2104161-E346A

BT60-23002 DATASHEET
