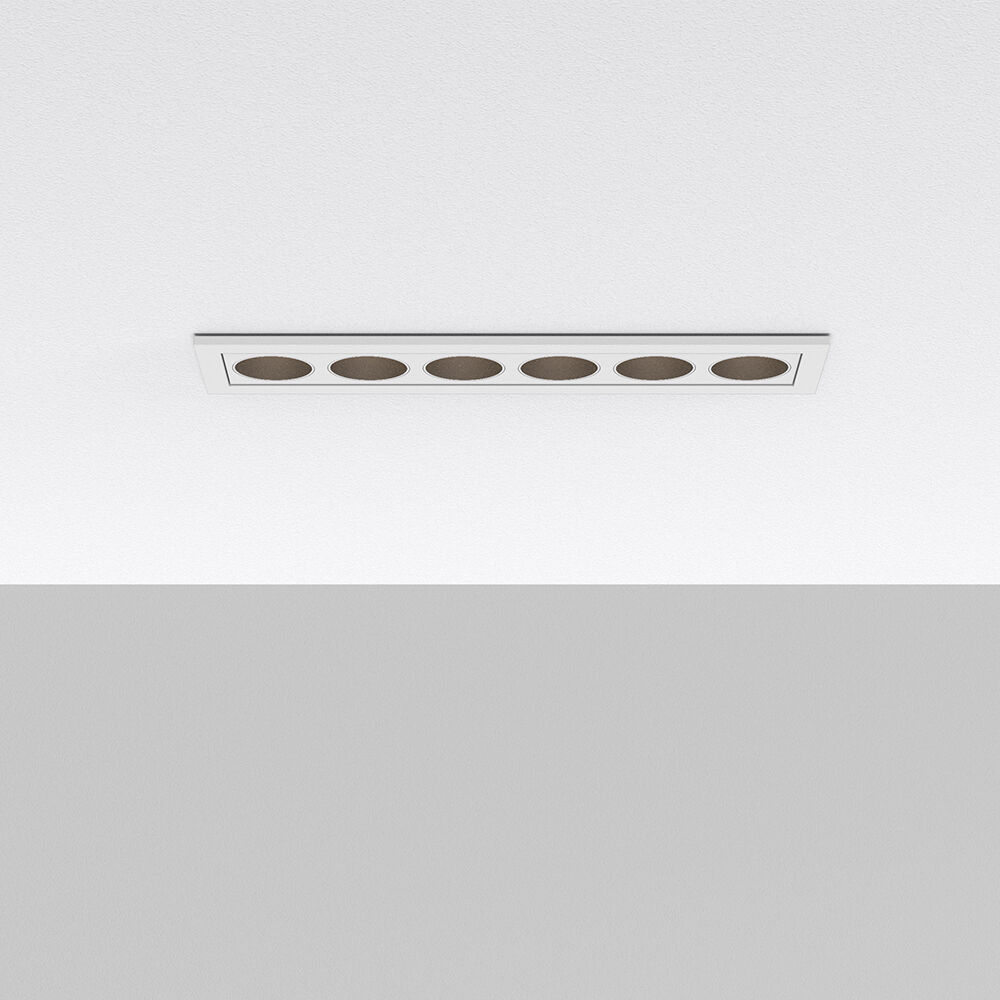

BRY-LINEX-LN6-9W-3CCT-WHT-LED LINEAR FIXTURE - 1

BRY-LINEX-LN6-9W-3CCT-WHT-LED LINEAR FIXTURE - 2

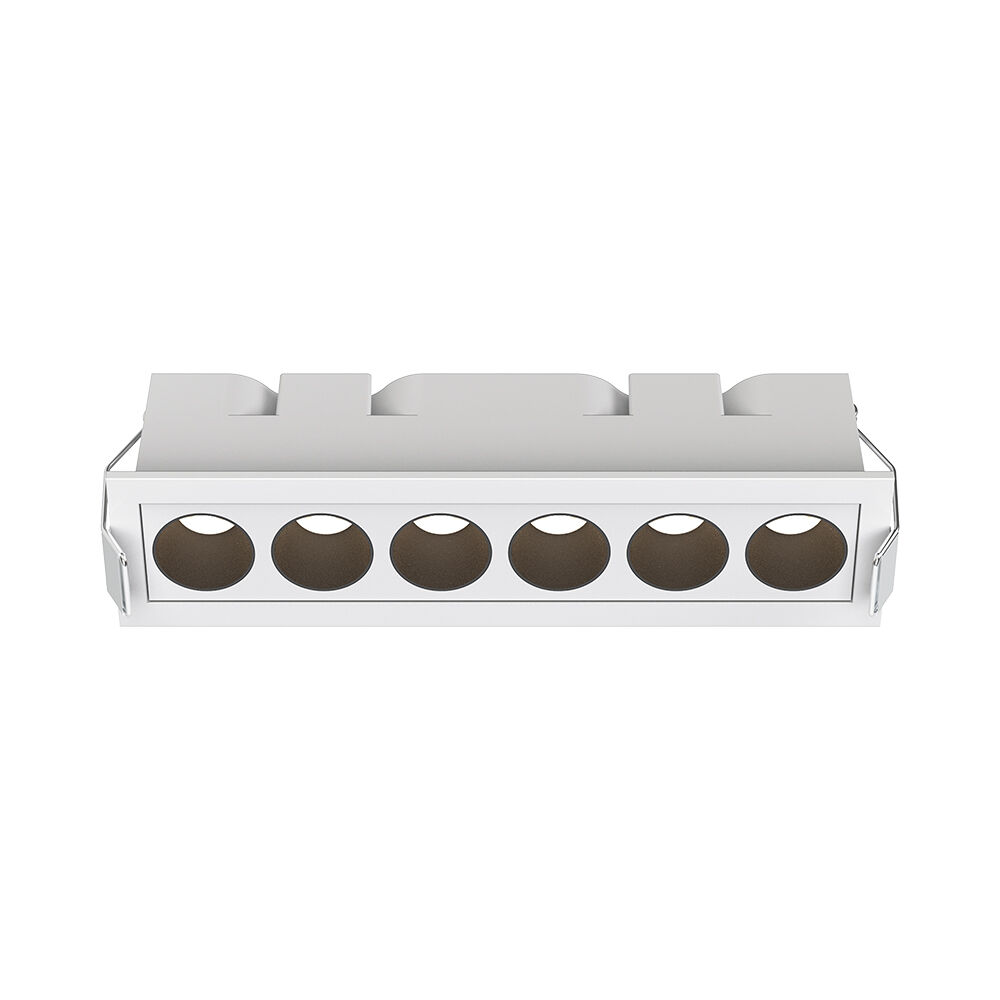

BRY-LINEX-LN6-9W-3CCT-WHT-LED LINEAR FIXTURE - 3

BRY-LINEX-LN6-9W-3CCT-WHT-LED LINEAR FIXTURE - 4

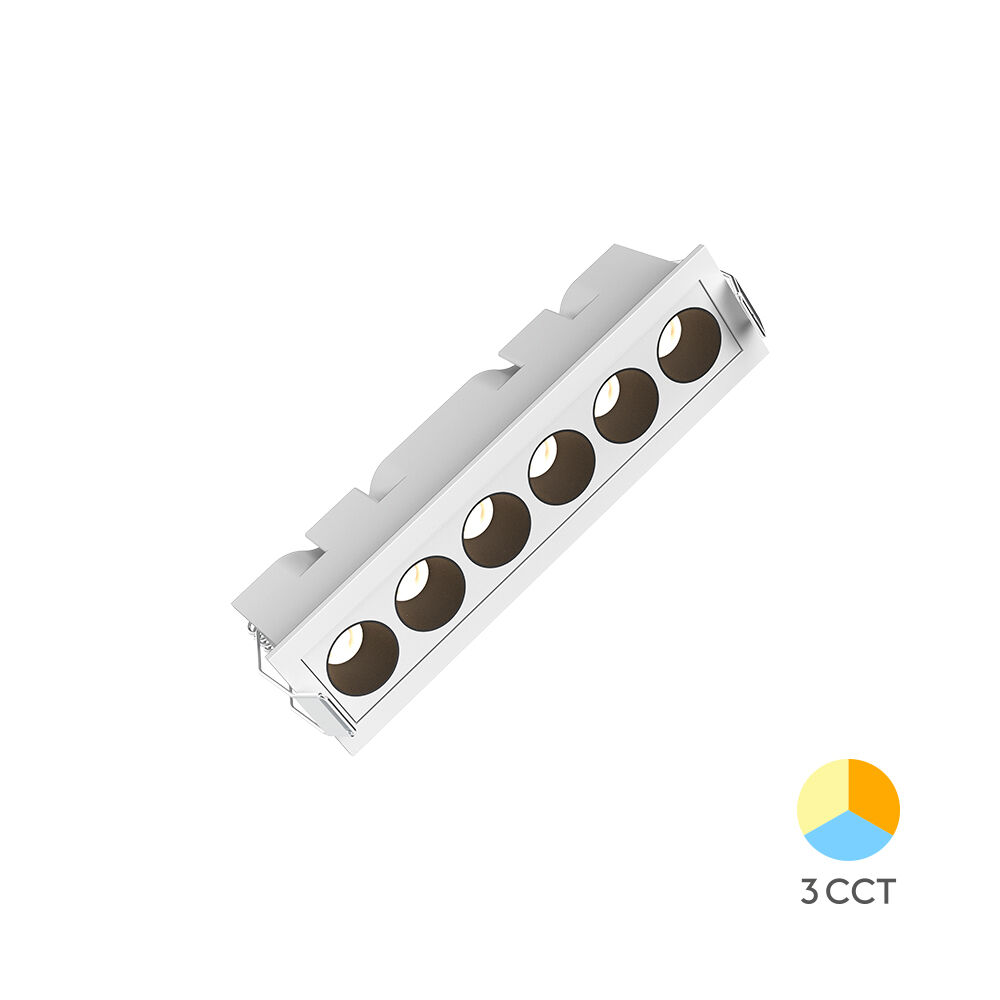

BRY-LINEX-LN6-9W-3CCT-WHT-LED LINEAR FIXTURE - 5

BRY-LINEX-LN6-9W-3CCT-WHT-LED LINEAR FIXTURE - 6

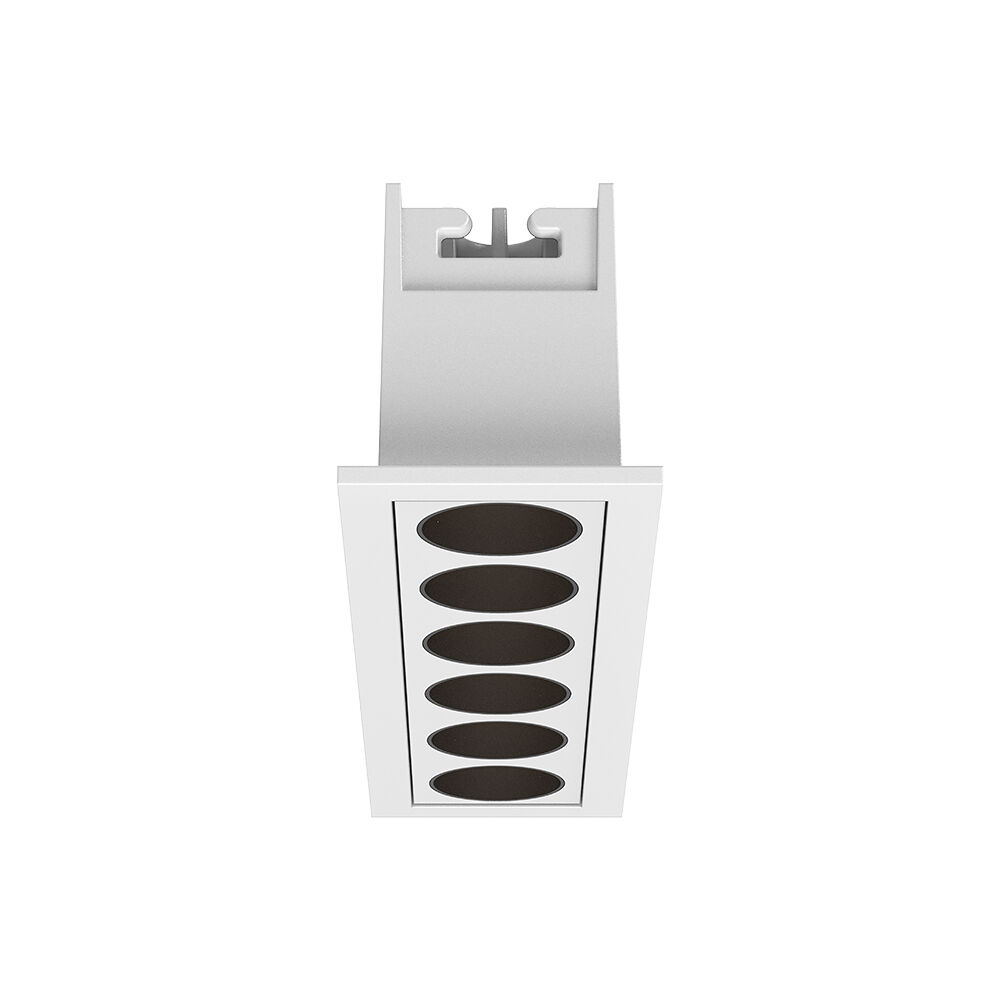

BRY-LINEX-LN6-9W-3CCT-WHT-LED LINEAR FIXTURE - 7

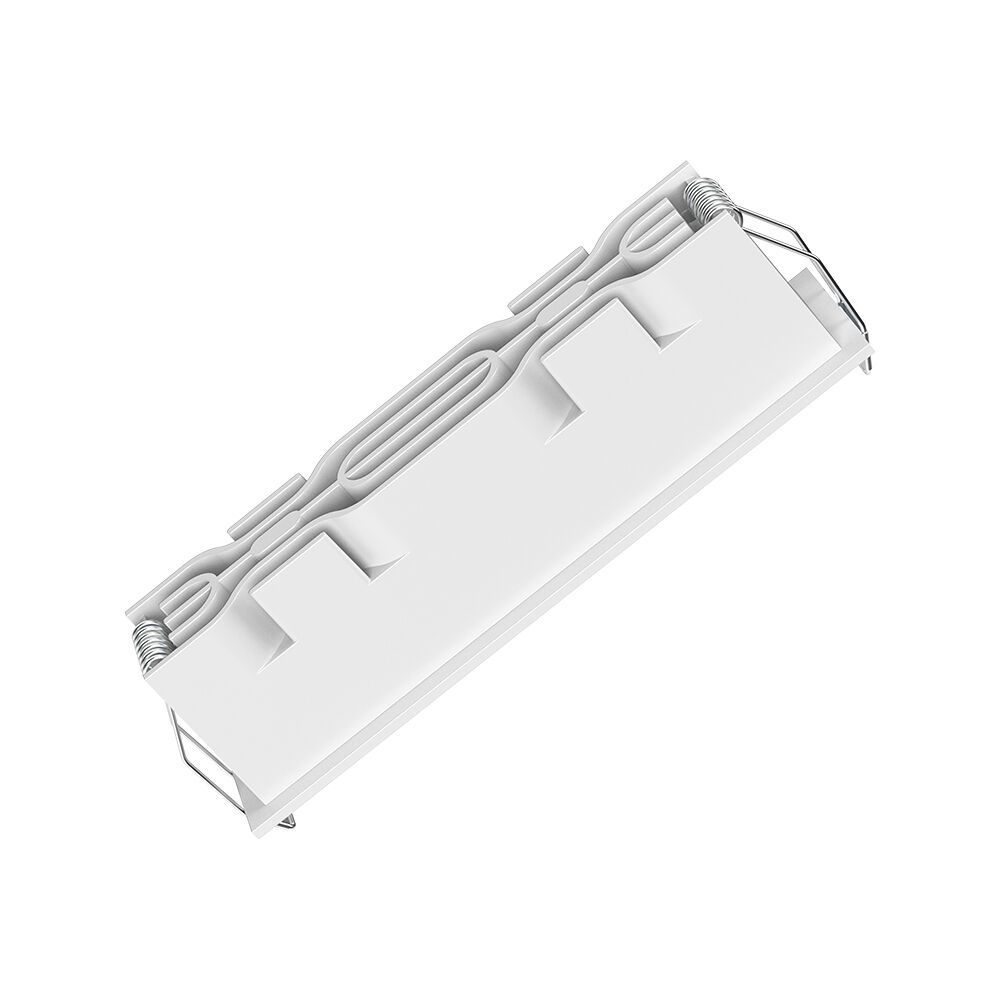

BRY-LINEX-LN6-9W-3CCT-WHT-LED LINEAR FIXTURE - 8

BRY-LINEX-LN6-9W-3CCT-WHT-LED LINEAR FIXTURE

BD63-00280

BRY-LINEX-LN6-9W-3CCT-WHT-LED LINEAR FIXTURE - 1

BRY-LINEX-LN6-9W-3CCT-WHT-LED LINEAR FIXTURE - 2

BRY-LINEX-LN6-9W-3CCT-WHT-LED LINEAR FIXTURE - 3

BRY-LINEX-LN6-9W-3CCT-WHT-LED LINEAR FIXTURE - 4

BRY-LINEX-LN6-9W-3CCT-WHT-LED LINEAR FIXTURE - 5

BRY-LINEX-LN6-9W-3CCT-WHT-LED LINEAR FIXTURE - 6

BRY-LINEX-LN6-9W-3CCT-WHT-LED LINEAR FIXTURE - 7

BRY-LINEX-LN6-9W-3CCT-WHT-LED LINEAR FIXTURE - 8

Family Products

General Characteristics

Model No

BD63-00280

Main Family

Indoor Lighting

Sub Family

LED Spotlight

Type

Linear Fixture

Body Color

White-Black

Lamp Shape

Directional

Dimmable

Not-Dimmable

Light Source

LED

Warranty

5 Years

Class

CLASS II

IP

IP20

Product Characteristics

Wattage

9 w

Color Temperature

3IN1

Quse Lumen

765 lm

Color Rendering Index (CRI)

≥90

Energy Efficiency Level

G

Beam Angle

24⁰

Color Category

3IN1

Electrical Characteristics

Lifetime

25000 h

Voltage

220-240V

Power Factor

>0,5

Material

Aluminium-PC

Working Temperature

-20⁰C ~ +40⁰C

Frequency

50/60Hz

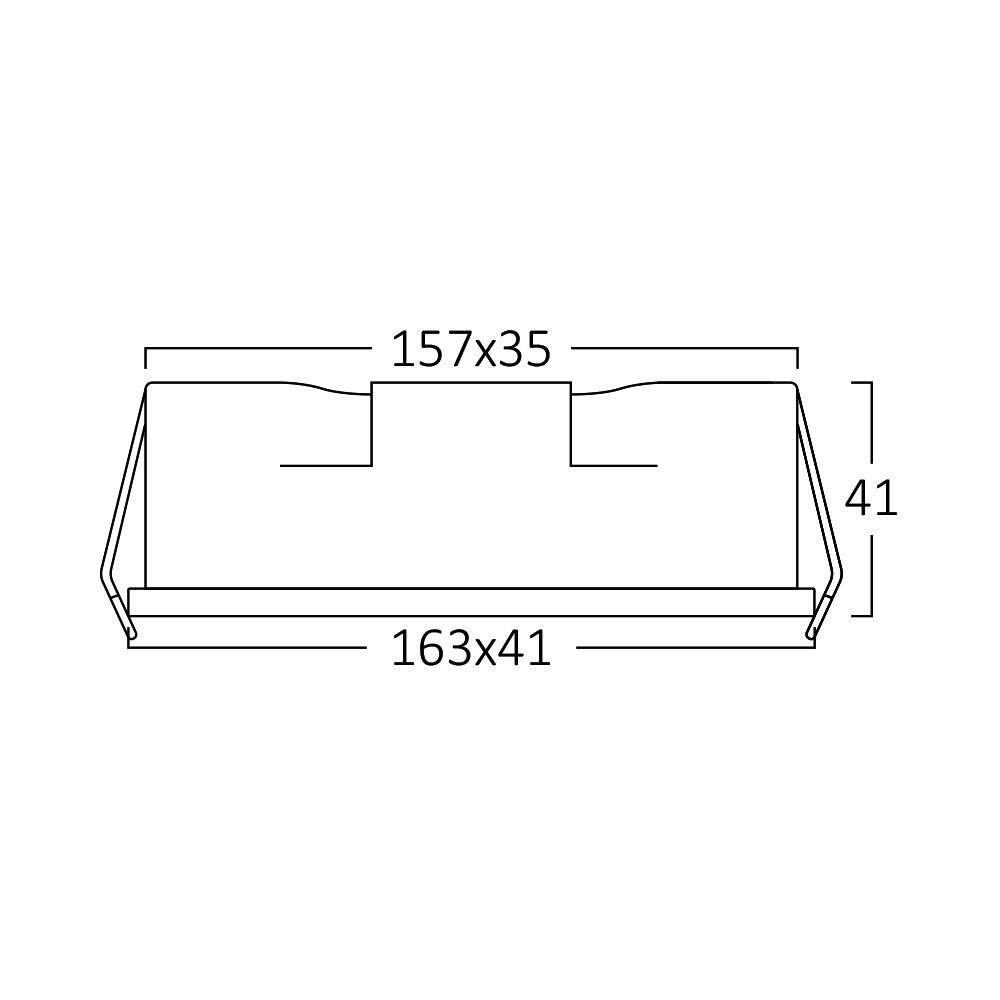

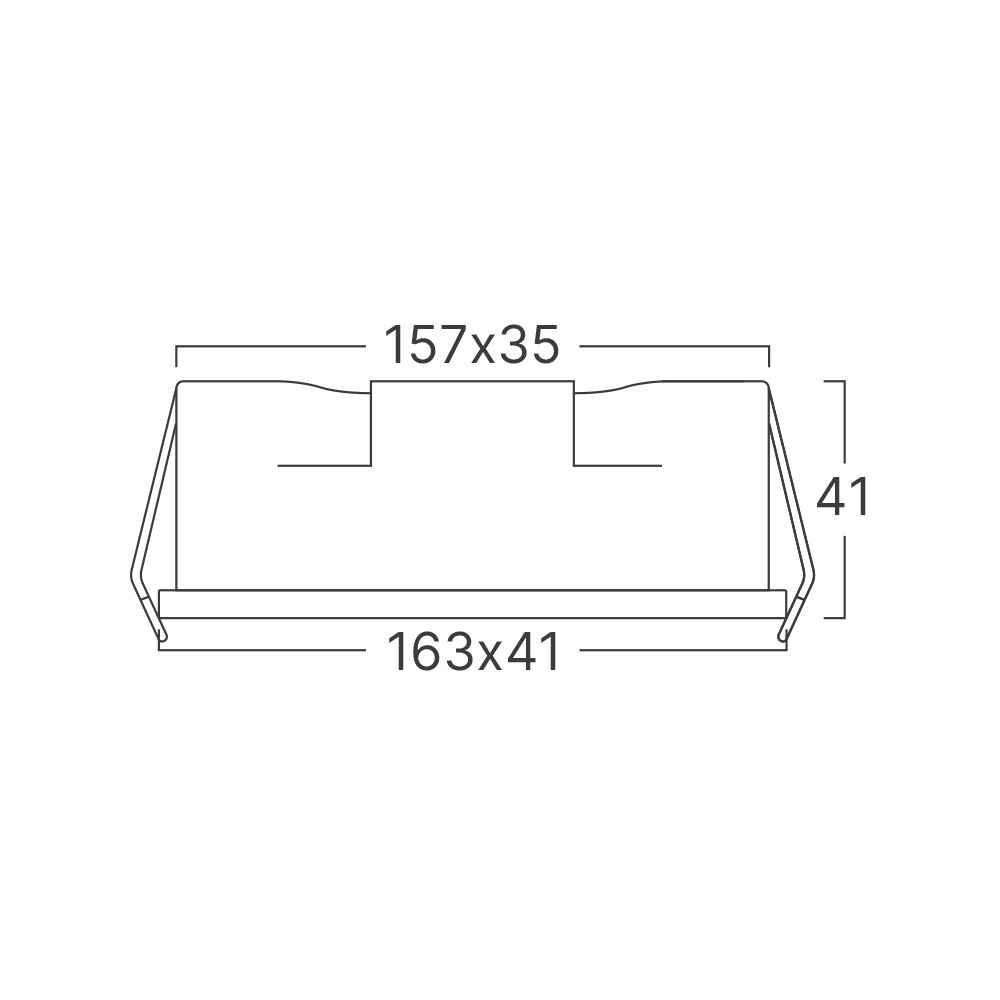

Dimensions & Weight

P. Length

163 mm

P. Width

41 mm

P. Height

41 mm

Cutout

157x35 mm

Weight

243 g

Package Informations

N.W.

7,3 kg

G.W.

8,8 kg

PCS/CTN

30

Length

58 cm

Width

20 cm

Height

21 cm

EAN

5949097739002

BD63-00280 DATASHEET
