BRY-MS03-180-MAX 800W-IP44-MOTION SENSOR

BY31-01030

BRY-MS03-180-MAX 800W-IP44-MOTION SENSOR - 1

BRY-MS03-180-MAX 800W-IP44-MOTION SENSOR - 2

BRY-MS03-180-MAX 800W-IP44-MOTION SENSOR - 3

BRY-MS03-180-MAX 800W-IP44-MOTION SENSOR - 4

BRY-MS03-180-MAX 800W-IP44-MOTION SENSOR - 5

BRY-MS03-180-MAX 800W-IP44-MOTION SENSOR - 6

BRY-MS03-180-MAX 800W-IP44-MOTION SENSOR - 7

Family Products

Specifications
Data Sheet

General Characteristics

Model No

BY31-01030

Main Family

Others

Sub Family

Sensor

Type

Sensor

Body Color

White

Lamp Shape

N/A

Light Source

N/A

Warranty

2 Years

Class

CLASS II

IP

IP44

Product Characteristics

Wattage

Max.800 w

Electrical Characteristics

Lifetime

20000 h

Voltage

220-240V

Material

PC

Working Temperature

-20⁰C ~ +40⁰C

Frequency

50/60Hz

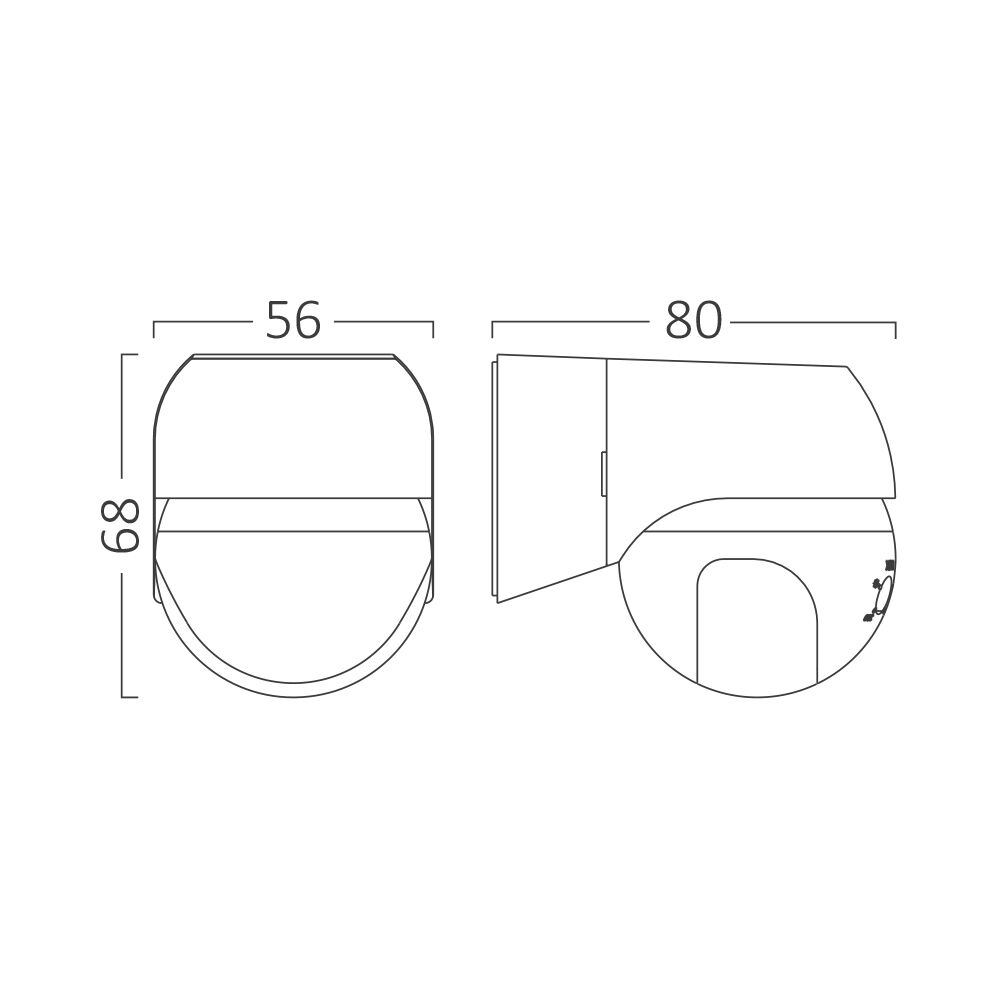

Dimensions & Weight

P. Length

68 mm

P. Width

55,5 mm

P. Height

80 mm

Weight

99 g

Sensor Informations

Sensor Type

Motion

Detection Distance

≤25 mt

Detection Angle

180° Degrees

Detection Speed

0,6-1,5m/s

Installation Height

2-3 mt

Time Delay

10 Sec.-8 Min.

Lux

5-2000 lux

Package Informations

N.W.

4,95 kg

G.W.

6,8 kg

PCS/CTN

50

Length

44 cm

Width

34,5 cm

Height

19 cm

EAN

5949097706189

BY31-01030 DATASHEET
