BRY-BULKHEAD-18W-RND-WHT-SNS-3IN1-IP65-LED BULKHEA

BC18-30780

BRY-BULKHEAD-18W-RND-WHT-SNS-3IN1-IP65-LED BULKHEA - 1

BRY-BULKHEAD-18W-RND-WHT-SNS-3IN1-IP65-LED BULKHEA - 2

BRY-BULKHEAD-18W-RND-WHT-SNS-3IN1-IP65-LED BULKHEA - 3

BRY-BULKHEAD-18W-RND-WHT-SNS-3IN1-IP65-LED BULKHEA - 4

BRY-BULKHEAD-18W-RND-WHT-SNS-3IN1-IP65-LED BULKHEA - 5

BRY-BULKHEAD-18W-RND-WHT-SNS-3IN1-IP65-LED BULKHEA - 6

BRY-BULKHEAD-18W-RND-WHT-SNS-3IN1-IP65-LED BULKHEA - 7

Family Products

General Characteristics

Model No

BC18-30780

Main Family

Outdoor Lighting

Sub Family

LED Bulkhead

Type

Bulkhead

Body Color

White

Lamp Shape

Non-Directional

Dimmable

Not-Dimmable

Light Source

LED

Warranty

2 Years

Class

CLASS II

IP

IP65

IK

IK06

Product Characteristics

Wattage

18 w

Color Temperature

3IN1

Quse Lumen

2020 lm

Color Rendering Index (CRI)

≥80

Energy Efficiency Level

E

Beam Angle

120⁰

Color Category

3IN1

Electrical Characteristics

Lifetime

20000 h

Voltage

220-240V

Power Factor

>0,5

Material

PC+PP

Working Temperature

-20⁰C ~ +40⁰C

Frequency

50/60Hz

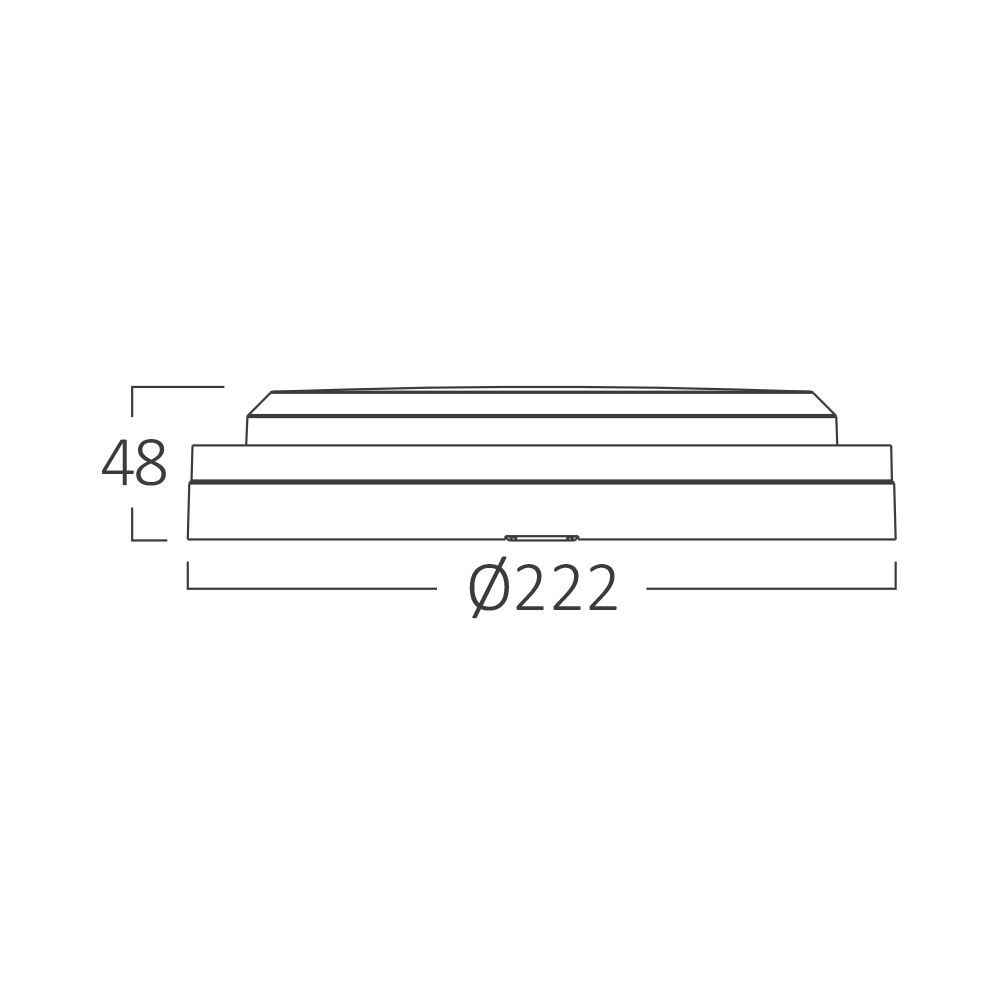

Dimensions & Weight

Diameter

222 mm

P. Height

48 mm

Weight

360 g

Sensor Informations

Sensor Type

Microwave

Detection Distance

6 m

Detection Angle

180° Degrees

Installation Height

3m-4m

Time Delay

120sec

Lux

<15 lux

Package Informations

N.W.

3,6 kg

G.W.

4,95 kg

PCS/CTN

10

Length

54 cm

Width

25 cm

Height

25 cm

EAN

5949097741883

BC18-30780 DATASHEET
