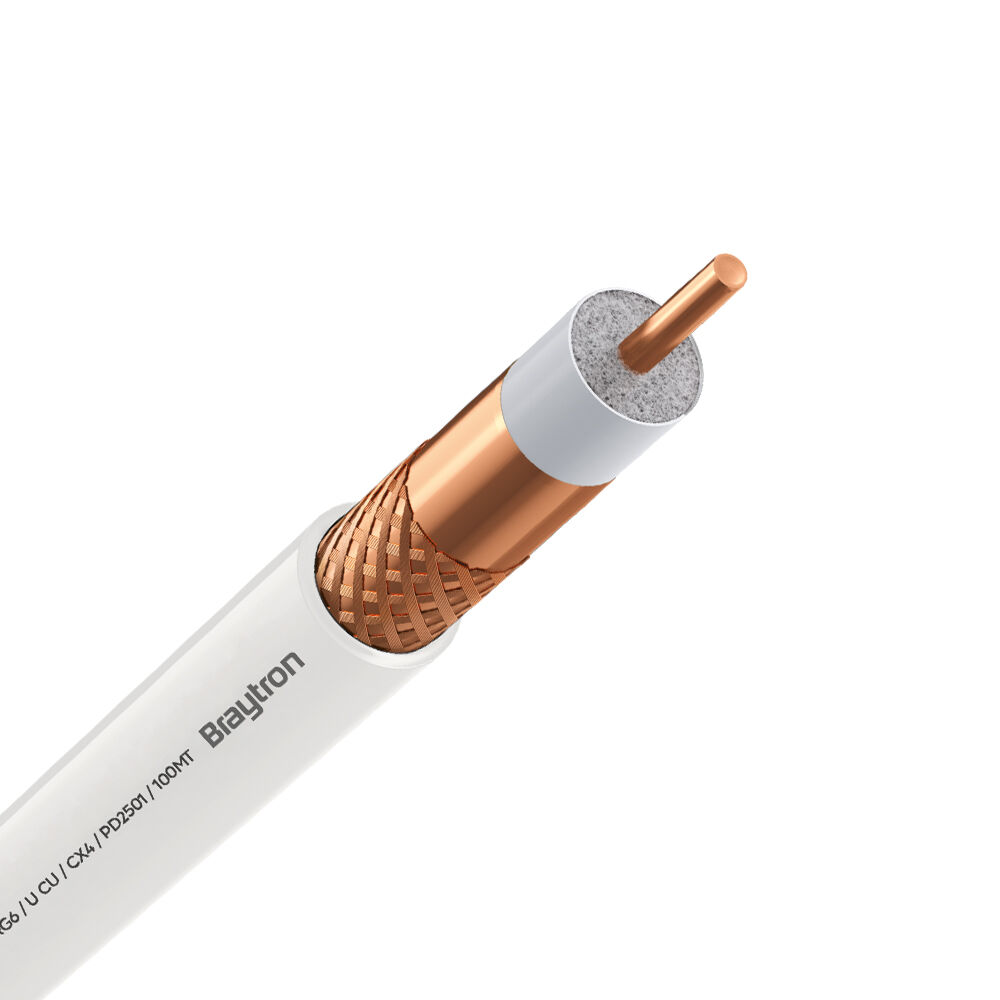

BRY-COAXIAL-RG6-CX4-CU-WHT-100M-CABLE - 1

BRY-COAXIAL-RG6-CX4-CU-WHT-100M-CABLE

BZ20-00230

Contact

Family Products

Specifications
Data Sheet

General Characteristics

Model No

BZ20-00230

Field of Application

Indoor

Temperature

-30 °C+70 °C

Bending Radius

10 x D

CPR Class

Class D

DoP No.

1

Sheath Colour

White

Main Family

Electrical

Sub Family

Cable

Cable Length

100 mt

Dimensions & Weight

Copper Approx

7.27kg/km

Outer Ø Approx

6,59 mm

Weight

4000 gr/roll

Package Informations

N.W.

24,00 kgs

G.W.

24,50 kgs

PCS/CTN

6 roll

Length

565 mm

Width

290 mm

Height

310 mm

EAN

5949097745935

Attenuation at 20°C

5 mHz

2,5 dB/100m

50 mHz

4,32 dB/100m

200 mHz

8,47 dB/100m

400 mHz

11,33 dB/100m

800 mHz

17,21 dB/100m

1000 mHz

19,79 dB/100m

2150 mHz

28,26 dB/100m

2400 mHz

30,1 dB/100m

3000 mHz

33,65 dB/100m

Certificates and Regulations

Coaxial TSE

Yes

2015/863/EU RoHS

Restriction of Hazardous Substances

2014/35/EU LVD

Low Voltage Directive

Flame Characteristics

Flame Retardancy

UV+Rohs

Halogen Free

Yes

Smoke Density

Middle

Low-Frequency and Electrical Characteristics

Insulation resistance

≥ 2 GΩxkm

Characteristic impedance

75 ± 3 Ω

Capacitance

52 ± 2 pF/m

Operating Voltage

Max. 1300 V

Test Voltage

3000 V

High-Frequency and Transmission Characteristics

18 B type / 75-5 type

18AWG

Test Frequency

5-3000 MHz

Velocity of Propagation

84% ± 2

Return Loss

5-470MHz > 20dB 470-1000MHz > 18dB 1000-2000MHz > 16dB 2000-3000MHz > 15dB

Screening Attenuation

300-1000MHz ≥ 75dB 1000-2000MHz ≥ 65dB 2000-3000MHz ≥ 55dB

Transfer Impedance

5-30MHz ≤ 50mΩ/m

Screening Class

Class C Type

Construction

Conductor

1.02CU 18 AWG

Insulation

4.57FPE

Screen

CuAl+PET FOIL+96x0.12CCA

Sheath

PVC

BZ20-00230 DATASHEET
