BRY-ECOLINE-12W-120L-2835-3000K-24V-IP20-LED STRIP

BS01-00810

BRY-ECOLINE-12W-120L-2835-3000K-24V-IP20-LED STRIP - 1

BRY-ECOLINE-12W-120L-2835-3000K-24V-IP20-LED STRIP - 2

BRY-ECOLINE-12W-120L-2835-3000K-24V-IP20-LED STRIP - 3

BRY-ECOLINE-12W-120L-2835-3000K-24V-IP20-LED STRIP - 4

BRY-ECOLINE-12W-120L-2835-3000K-24V-IP20-LED STRIP - 5

BRY-ECOLINE-12W-120L-2835-3000K-24V-IP20-LED STRIP - 6

Family Products

General Characteristics

Model No

BS01-00810

Main Family

LED Strip

Sub Family

12V-24V LED Strip

Type

Strip

Body Color

White

Lamp Shape

Non-Directional

Light Source

LED

Warranty

2 Years

Class

CLASS III

IP

IP20

Product Characteristics

Wattage

12 w

Color Temperature

3000K

Quse Lumen

1200 lm

Color Rendering Index (CRI)

≥80

Energy Efficiency Level

F

Beam Angle

120⁰

Color Category

Warm White

Electrical Characteristics

Lifetime

20000 h

Led Quantity

120led/mt

Voltage

24V DC

Material

FPCB

Working Temperature

-20⁰C ~ +40⁰C

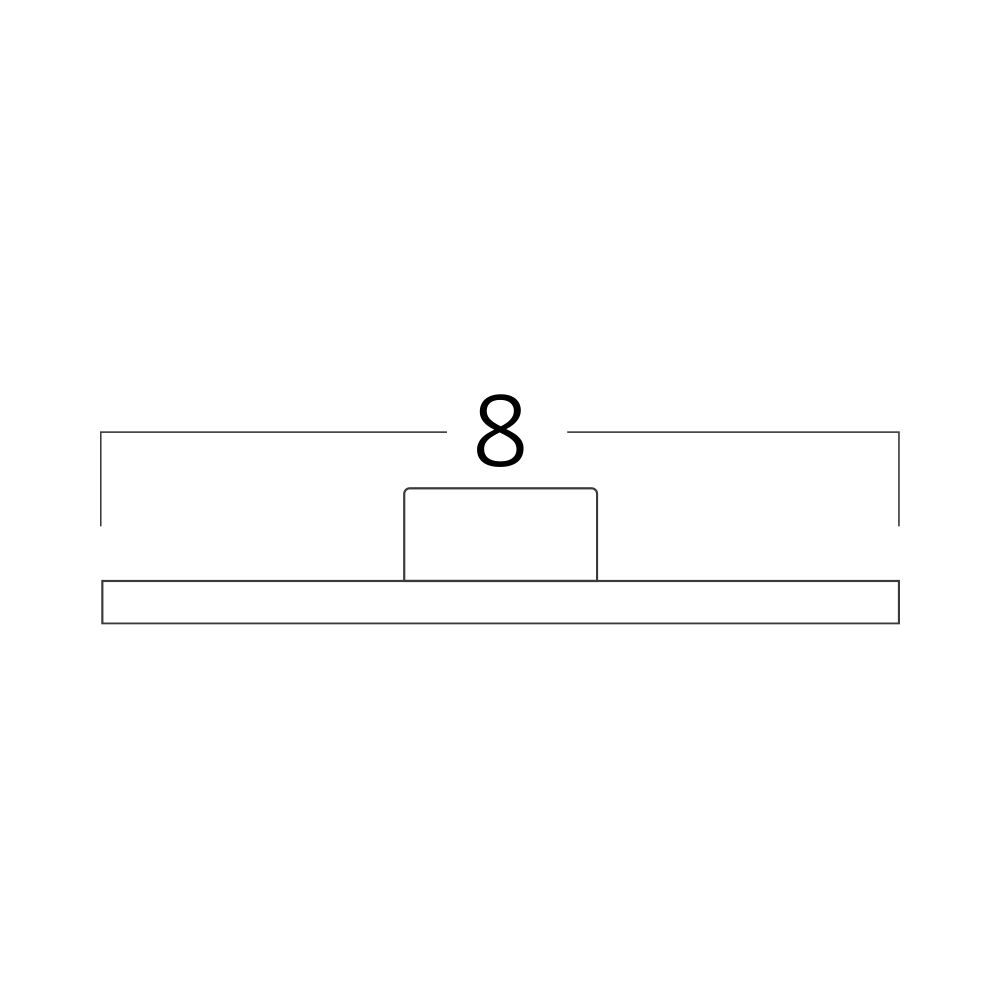

Dimensions & Weight

P. Length

10 mm

P. Width

8 mm

P. Height

1 mm

Weight

12 g

Package Informations

N.W.

2,4 kg

G.W.

3,15 kg

PCS/CTN

200

Length

23,5 cm

Width

21,5 cm

Height

22,5 cm

EAN

5949097723933

BS01-00810 DATASHEET
