BRY-ECOLINE-12W-60L-5050-RGB-12V-IP54-LED STRIP - 1

BRY-ECOLINE-12W-60L-5050-RGB-12V-IP54-LED STRIP - 2

BRY-ECOLINE-12W-60L-5050-RGB-12V-IP54-LED STRIP - 3

BRY-ECOLINE-12W-60L-5050-RGB-12V-IP54-LED STRIP

BS01-00409

BRY-ECOLINE-12W-60L-5050-RGB-12V-IP54-LED STRIP - 1

BRY-ECOLINE-12W-60L-5050-RGB-12V-IP54-LED STRIP - 2

BRY-ECOLINE-12W-60L-5050-RGB-12V-IP54-LED STRIP - 3

Family Products

Specifications
Data Sheet

General Characteristics

Model No

BS01-00409

Main Family

LED Strip

Sub Family

12V-24V LED Strip

Type

Strip

Body Color

White

Lamp Shape

Non-Directional

Light Source

LED

Warranty

2 years

Class

Class III

IP

IP54

Lamp Characteristics

Wattage

12 w/mt

Color Temperature

RGB

Quse Lumen

RGB+720 lm/mt

Electrical Characteristics

Lifetime (at 2.7 h/day)

20000 h

Voltage

12VDC

Material

FPCB

Working Temperature

-20 C-40 C

Lamp Dimensions & Weight

P. Length

1000 mm

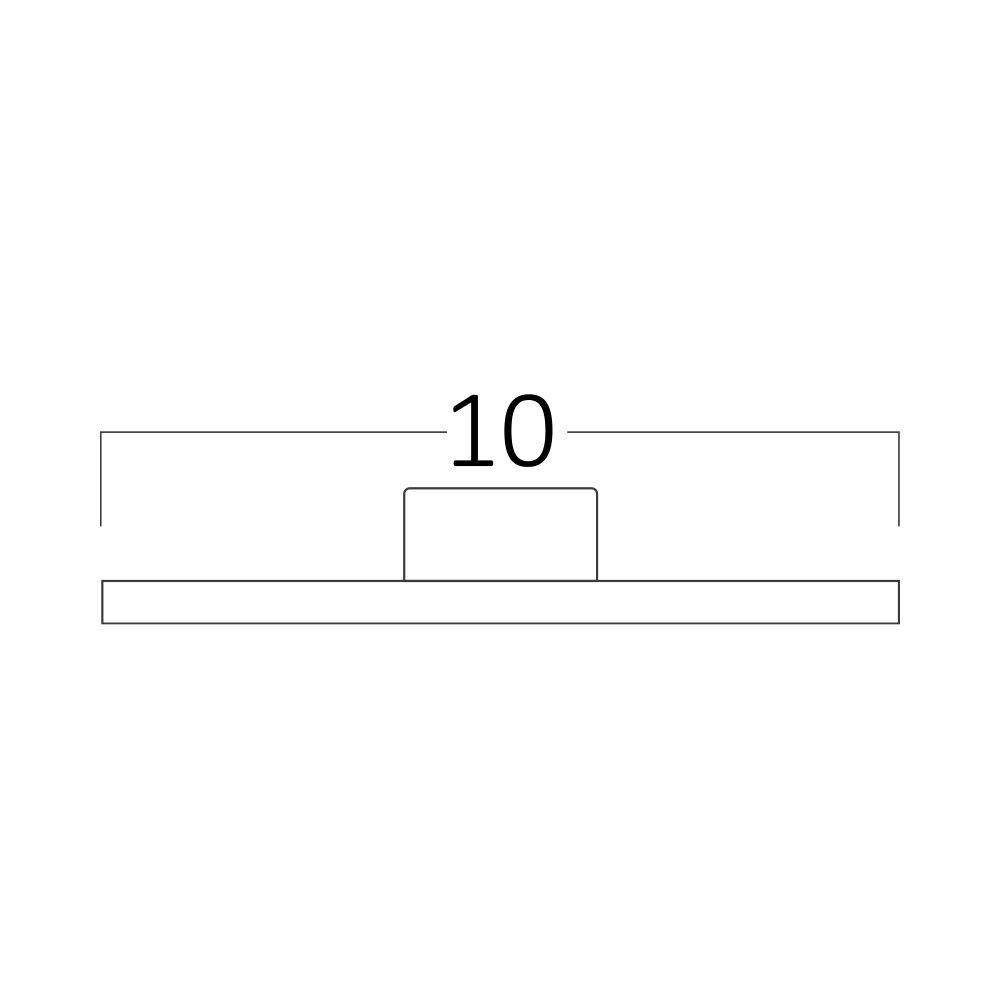

P. Width

10 mm

Weight

33 gr

Package Informations

N.W.

9,3 kgs

G.W.

10,5 kgs

PCS/CTN

250 mt

Length

340 mm

Width

320 mm

Height

175 mm

EAN

5949097703348

BS01-00409 DATASHEET
