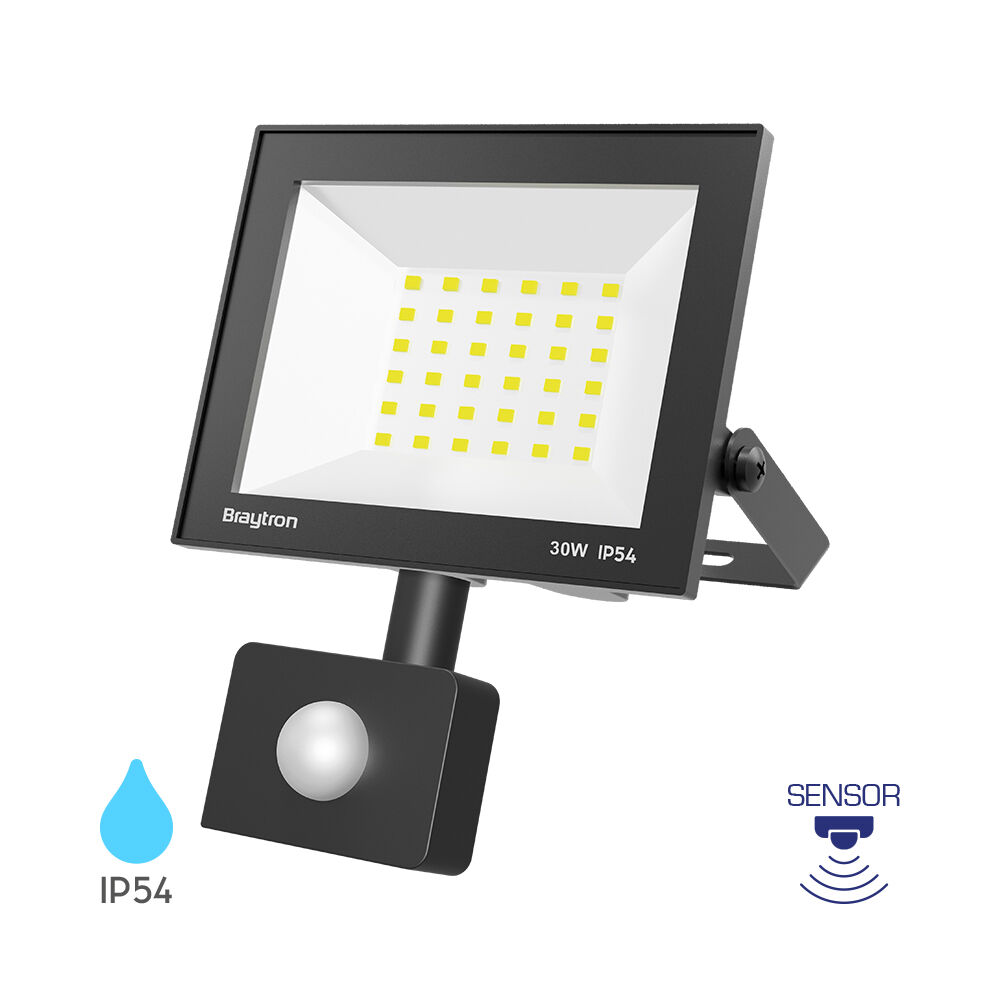

BRY-FLOOD-CF-30W-BLC-6500K-SNS-IP54-LED FLOODLIGHT

BT66-23031

BRY-FLOOD-CF-30W-BLC-6500K-SNS-IP54-LED FLOODLIGHT - 1

BRY-FLOOD-CF-30W-BLC-6500K-SNS-IP54-LED FLOODLIGHT - 2

BRY-FLOOD-CF-30W-BLC-6500K-SNS-IP54-LED FLOODLIGHT - 3

BRY-FLOOD-CF-30W-BLC-6500K-SNS-IP54-LED FLOODLIGHT - 4

BRY-FLOOD-CF-30W-BLC-6500K-SNS-IP54-LED FLOODLIGHT - 5

BRY-FLOOD-CF-30W-BLC-6500K-SNS-IP54-LED FLOODLIGHT - 6

BRY-FLOOD-CF-30W-BLC-6500K-SNS-IP54-LED FLOODLIGHT - 7

Family Products

General Characteristics

Model No

BT66-23031

Main Family

Outdoor Lighting

Sub Family

LED Floodlight

Type

Floodlight

Body Color

Black

Lamp Shape

Non-Directional

Dimmable

Not-Dimmable

Light Source

LED

Warranty

2 Years

Class

CLASS I

IP

IP54

IK

IK05

Product Characteristics

Wattage

30 w

Color Temperature

6500K

Quse Lumen

2550 lm

Color Rendering Index (CRI)

≥80

Energy Efficiency Level

E

Beam Angle

120⁰

Color Category

Cool White

Electrical Characteristics

Lifetime

20000 h

Voltage

220-240V

Power Factor

>0,9

Material

Aluminium

Working Temperature

-20⁰C ~ +40⁰C

Frequency

50/60Hz

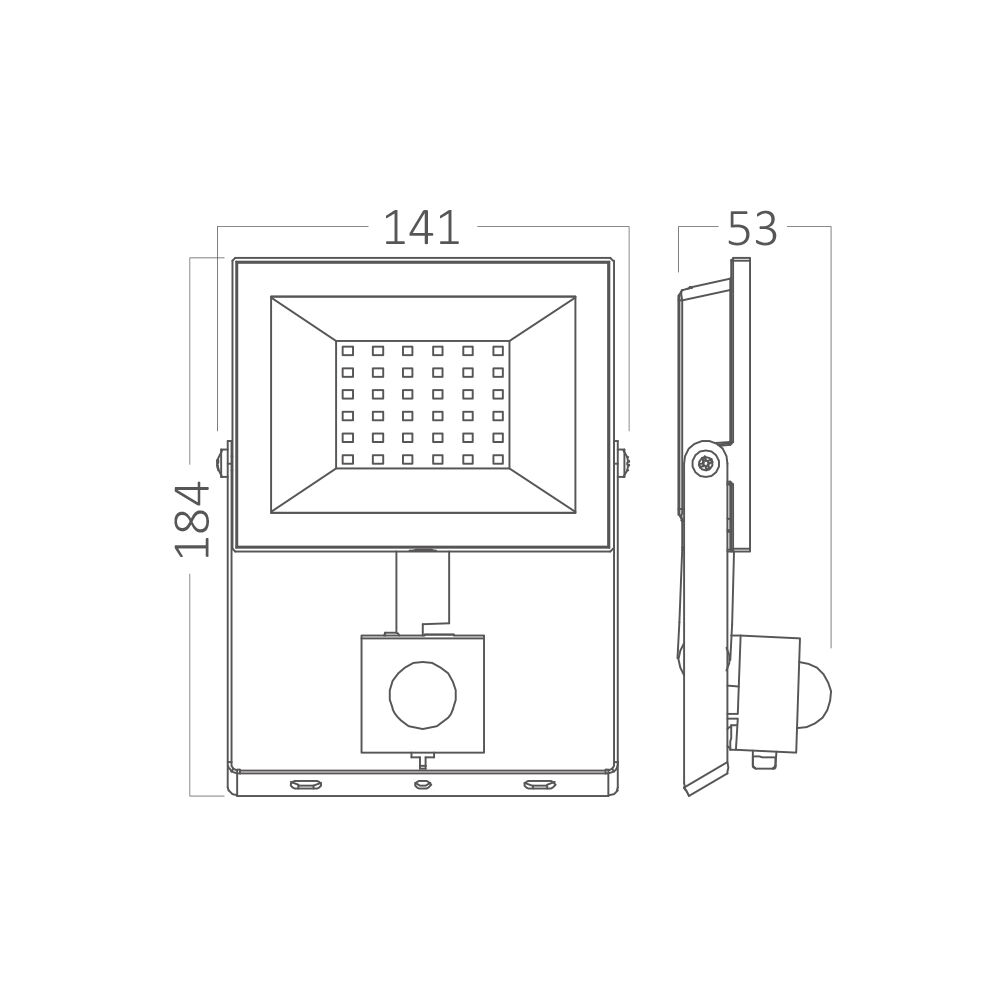

Dimensions & Weight

P. Length

141 mm

P. Width

53 mm

P. Height

184 mm

Weight

310 g

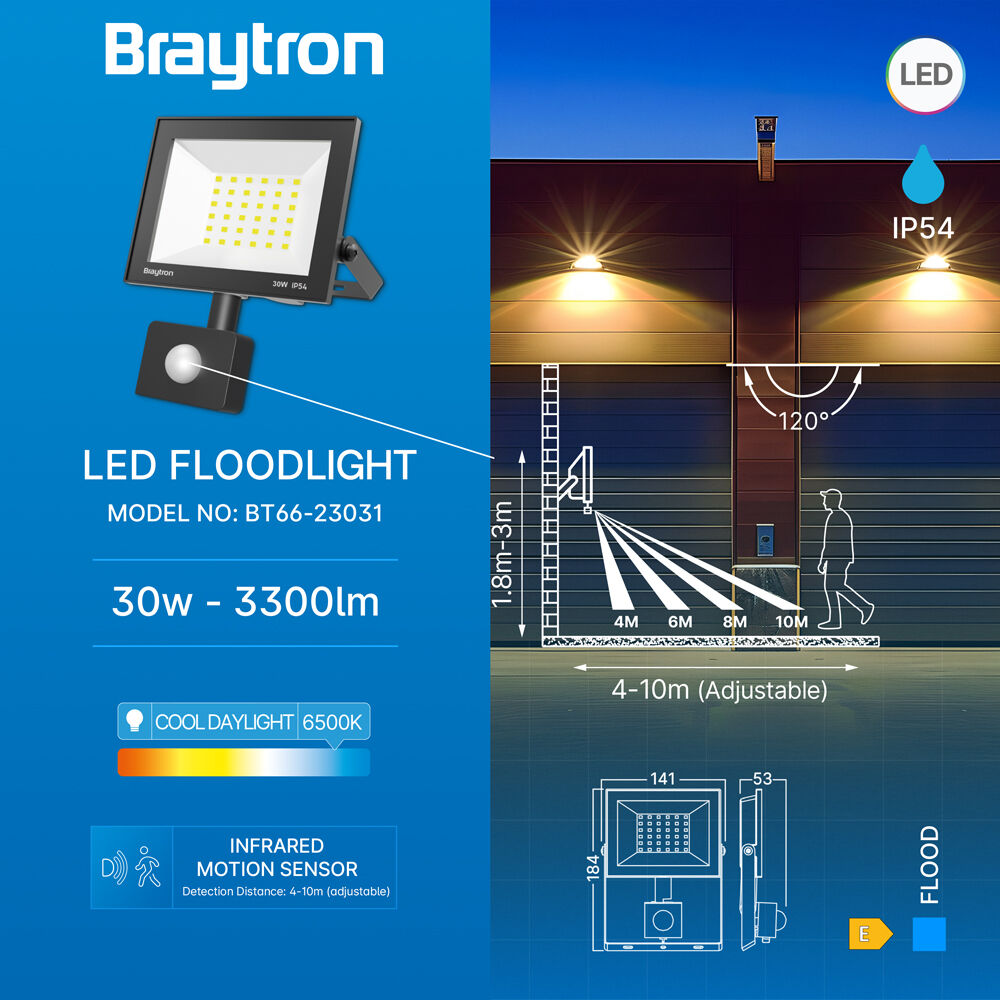

Sensor Informations

Sensor Type

Motion

Detection Distance

≤8 mt

Detection Angle

120° Degrees

Detection Speed

0,6-1,5m/s

Installation Height

2-3 mt

Time Delay

30sec-5min

Lux

10-2000 lux

Package Informations

N.W.

6,2 kg

G.W.

7,8 kg

PCS/CTN

20

Length

57 cm

Width

31,5 cm

Height

22 cm

EAN

5949097744259

BT66-23031 DATASHEET
