BRY-GRANDE-RND-20W-5IN1-SNS-IP54-CEILING LIGHT

BC15-00480

BRY-GRANDE-RND-20W-5IN1-SNS-IP54-CEILING LIGHT - 1

BRY-GRANDE-RND-20W-5IN1-SNS-IP54-CEILING LIGHT - 2

BRY-GRANDE-RND-20W-5IN1-SNS-IP54-CEILING LIGHT - 3

BRY-GRANDE-RND-20W-5IN1-SNS-IP54-CEILING LIGHT - 4

BRY-GRANDE-RND-20W-5IN1-SNS-IP54-CEILING LIGHT - 5

BRY-GRANDE-RND-20W-5IN1-SNS-IP54-CEILING LIGHT - 6

BRY-GRANDE-RND-20W-5IN1-SNS-IP54-CEILING LIGHT - 7

Family Products

General Characteristics

Model No

BC15-00480

Main Family

Indoor Lighting

Sub Family

Sensor Fixtures

Type

Ceiling Light

Body Color

White

Lamp Shape

Non-Directional

Dimmable

Not-Dimmable

Light Source

LED

Warranty

2 Years

Class

CLASS II

IP

IP54

IK

IK07

Product Characteristics

Wattage

20 w

Color Temperature

5IN1

Quse Lumen

2000 lm

Color Rendering Index (CRI)

≥80

Energy Efficiency Level

F

Beam Angle

120⁰

Color Category

5IN1

Electrical Characteristics

Lifetime

20000 h

Voltage

220-240V

Power Factor

>0,5

Material

PA+PP

Working Temperature

-20⁰C ~ +40⁰C

Frequency

50/60Hz

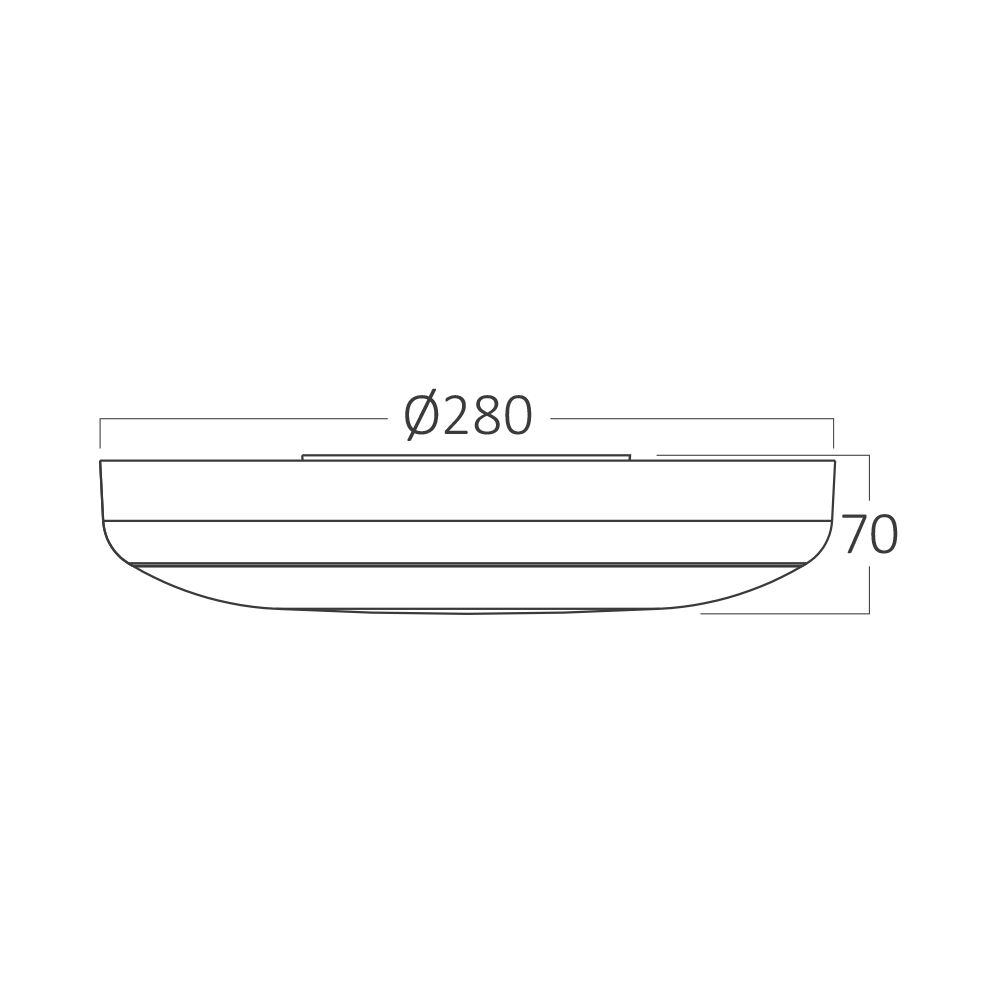

Dimensions & Weight

Diameter

280 mm

P. Height

70 mm

Weight

685 g

Sensor Informations

Sensor Type

Microwave

Detection Distance

≤8 mt

Detection Angle

180° Degrees

Installation Height

2-3 mt

Time Delay

30-120 Sec.

Lux

5-1000 lux

Package Informations

N.W.

5,5 kg

G.W.

7,5 kg

PCS/CTN

8

Length

58,5 cm

Width

31,5 cm

Height

30,5 cm

EAN

5949097739927

BC15-00480 DATASHEET
