BRY-LINEX-CD20-20W-3CCT-BLC-LED DOWNLIGHT

BD37-00281

BRY-LINEX-CD20-20W-3CCT-BLC-LED DOWNLIGHT - 1

BRY-LINEX-CD20-20W-3CCT-BLC-LED DOWNLIGHT - 2

BRY-LINEX-CD20-20W-3CCT-BLC-LED DOWNLIGHT - 3

BRY-LINEX-CD20-20W-3CCT-BLC-LED DOWNLIGHT - 4

BRY-LINEX-CD20-20W-3CCT-BLC-LED DOWNLIGHT - 5

BRY-LINEX-CD20-20W-3CCT-BLC-LED DOWNLIGHT - 6

BRY-LINEX-CD20-20W-3CCT-BLC-LED DOWNLIGHT - 7

Family Products

General Characteristics

Model No

BD37-00281

Main Family

Indoor Lighting

Sub Family

LED Spotlight

Type

Spotlight

Body Color

White-Black

Lamp Shape

Directional

Dimmable

Not-Dimmable

Light Source

LED

Warranty

5 Years

Class

CLASS II

IP

IP20

Product Characteristics

Wattage

20 w

Color Temperature

3IN1

Quse Lumen

2200 lm

Color Rendering Index (CRI)

≥90

Energy Efficiency Level

E

Beam Angle

36⁰

Color Category

3IN1

Electrical Characteristics

Lifetime

25000 h

Voltage

220-240V

Power Factor

>0,5

Material

Aluminium-PC

Working Temperature

-20⁰C ~ +40⁰C

Frequency

50/60Hz

Current

16 A

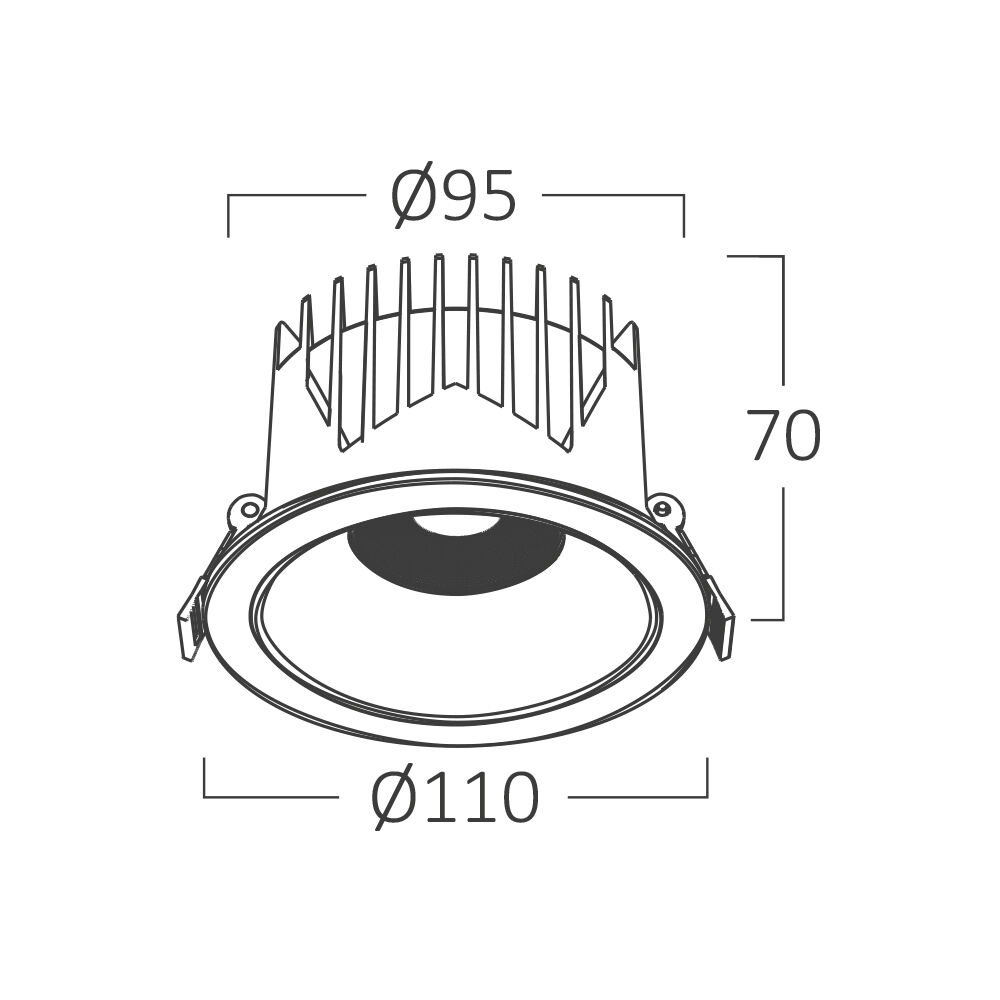

Dimensions & Weight

Diameter

110 mm

P. Height

70 mm

Cutout

95 mm

Weight

346 g

Package Informations

N.W.

6,9 kg

G.W.

8,5 kg

PCS/CTN

20

Length

60 cm

Width

26 cm

Height

22 cm

EAN

5949097738999

BD37-00281 DATASHEET
