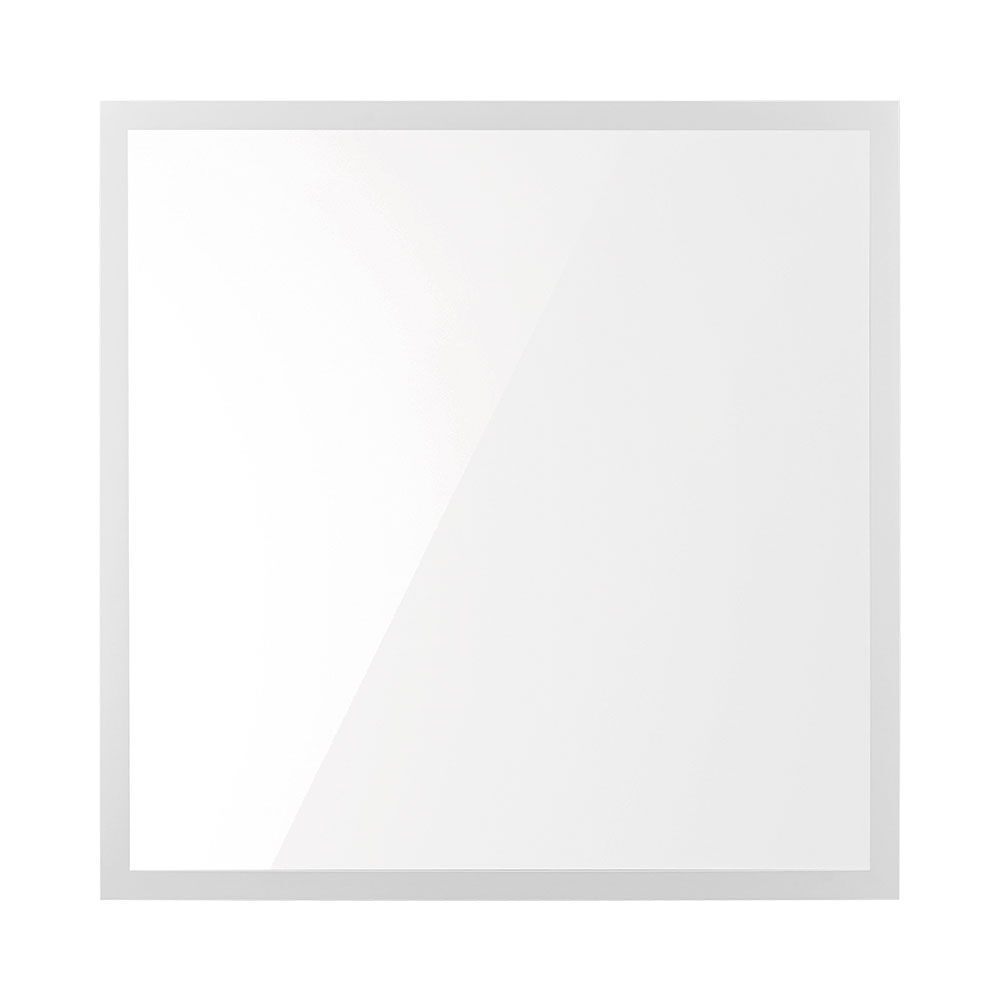

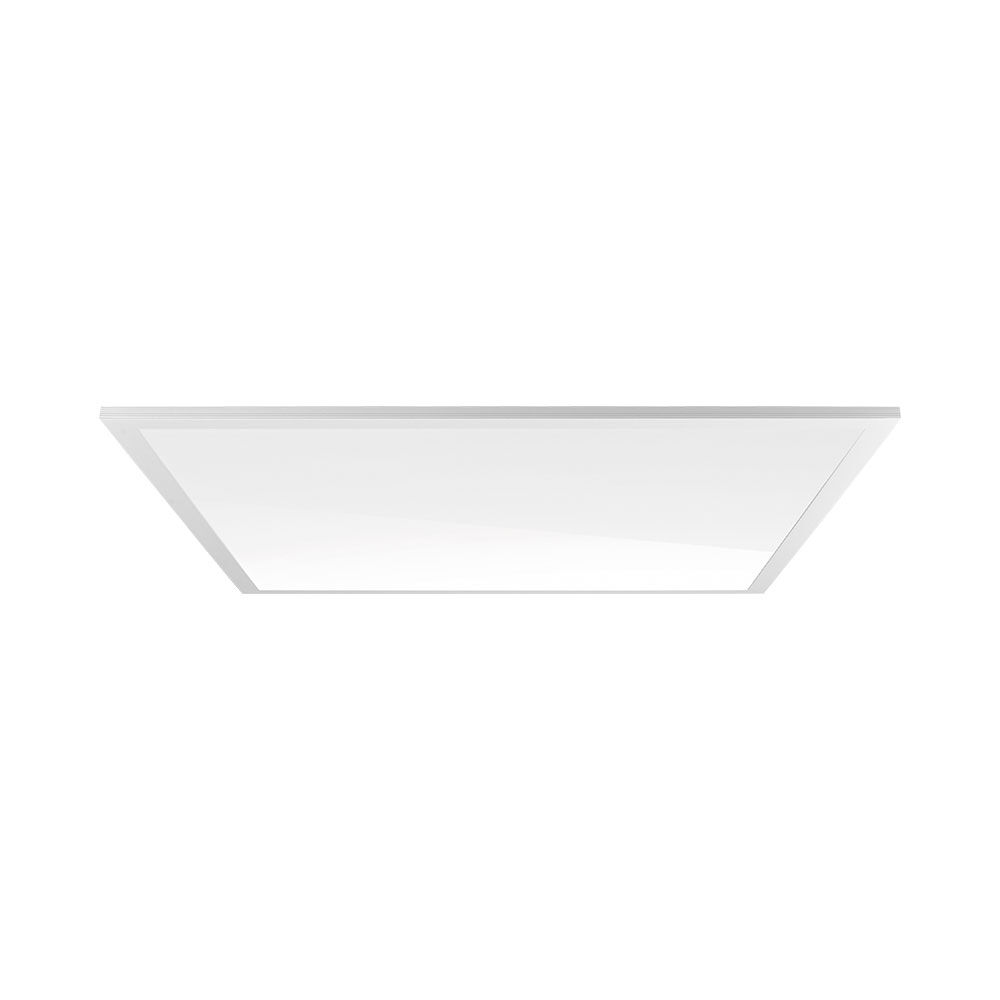

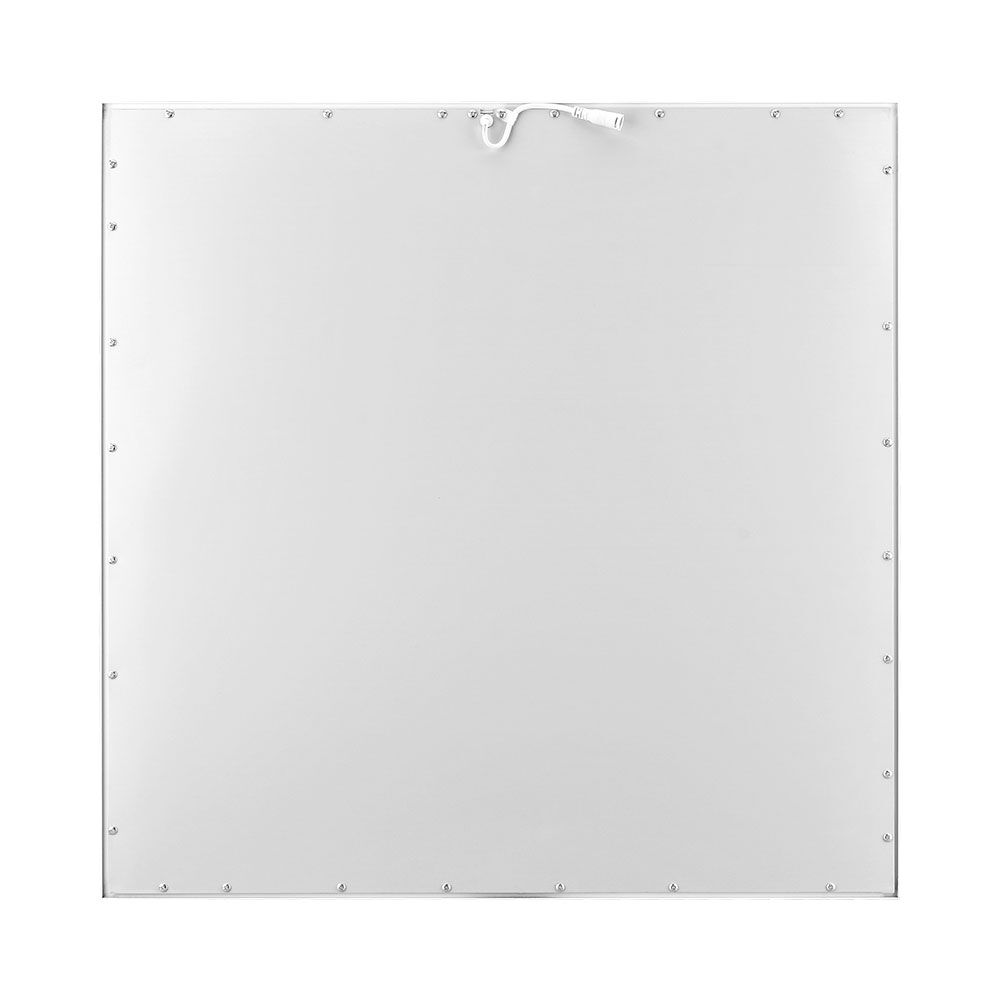

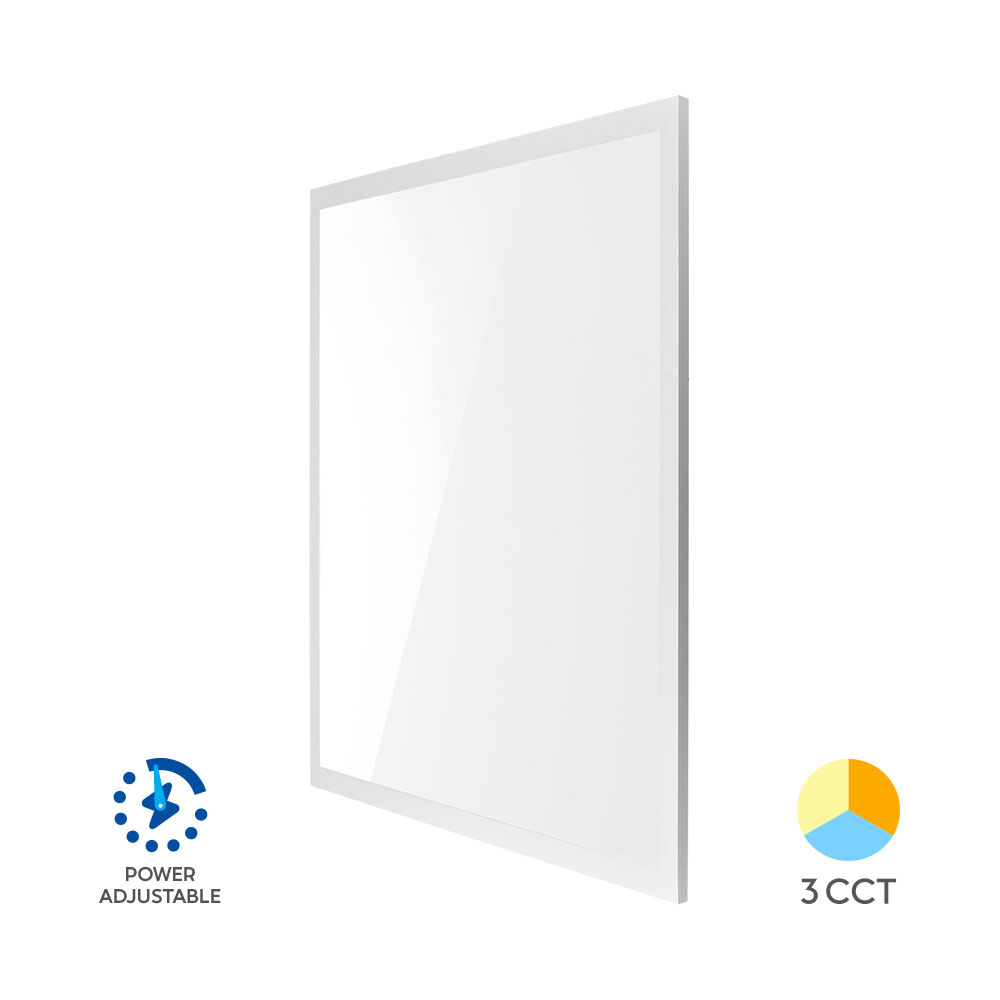

BRY-PANELLED-40W-620x620-WHT-3CCT-LED PANEL LIGHT

BP16-46280

BRY-PANELLED-40W-620x620-WHT-3CCT-LED PANEL LIGHT - 1

BRY-PANELLED-40W-620x620-WHT-3CCT-LED PANEL LIGHT - 2

BRY-PANELLED-40W-620x620-WHT-3CCT-LED PANEL LIGHT - 3

BRY-PANELLED-40W-620x620-WHT-3CCT-LED PANEL LIGHT - 4

BRY-PANELLED-40W-620x620-WHT-3CCT-LED PANEL LIGHT - 5

BRY-PANELLED-40W-620x620-WHT-3CCT-LED PANEL LIGHT - 6

BRY-PANELLED-40W-620x620-WHT-3CCT-LED PANEL LIGHT - 7

Family Products

General Characteristics

Model No

BP16-46280

Main Family

Indoor Lighting

Sub Family

LED Big Panel

Type

RECESSED PANEL

Body Color

White

Lamp Shape

Non-Directional

Dimmable

Not-Dimmable

Light Source

LED

Warranty

5 years

Class

Class II

IP

IP20

Lamp Characteristics

Wattage

40 w

Color Temperature

3IN1

Quse Lumen

4800 lm

Color Rendering Index (CRI)

>80

Energy Efficiency Level

E

Beam Angle

110° Degrees

Color Category

3IN1

Electrical Characteristics

Lifetime (at 2.7 h/day)

20000 h

Voltage

220-240V

Power Factor

>0,9

Material

Aluminium

Working Temperature

-20 C-40 C

Frequency

50-60 Hz

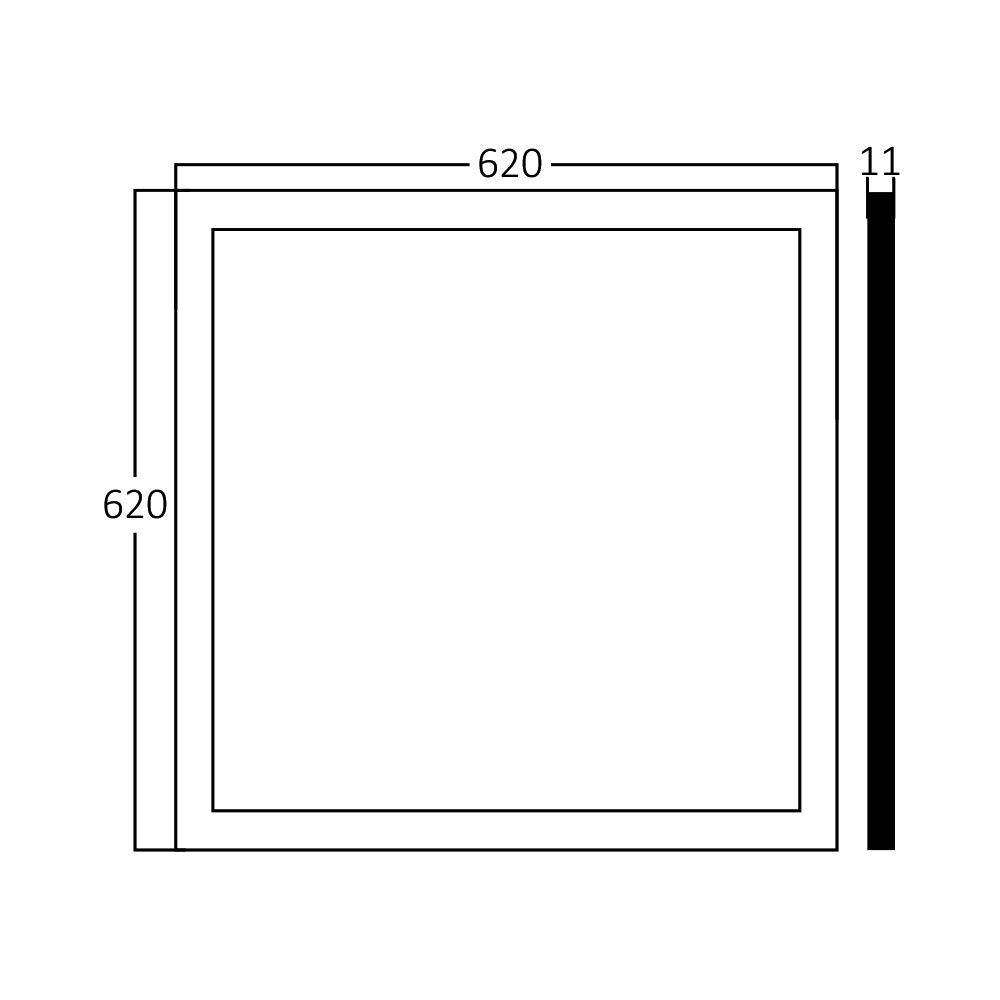

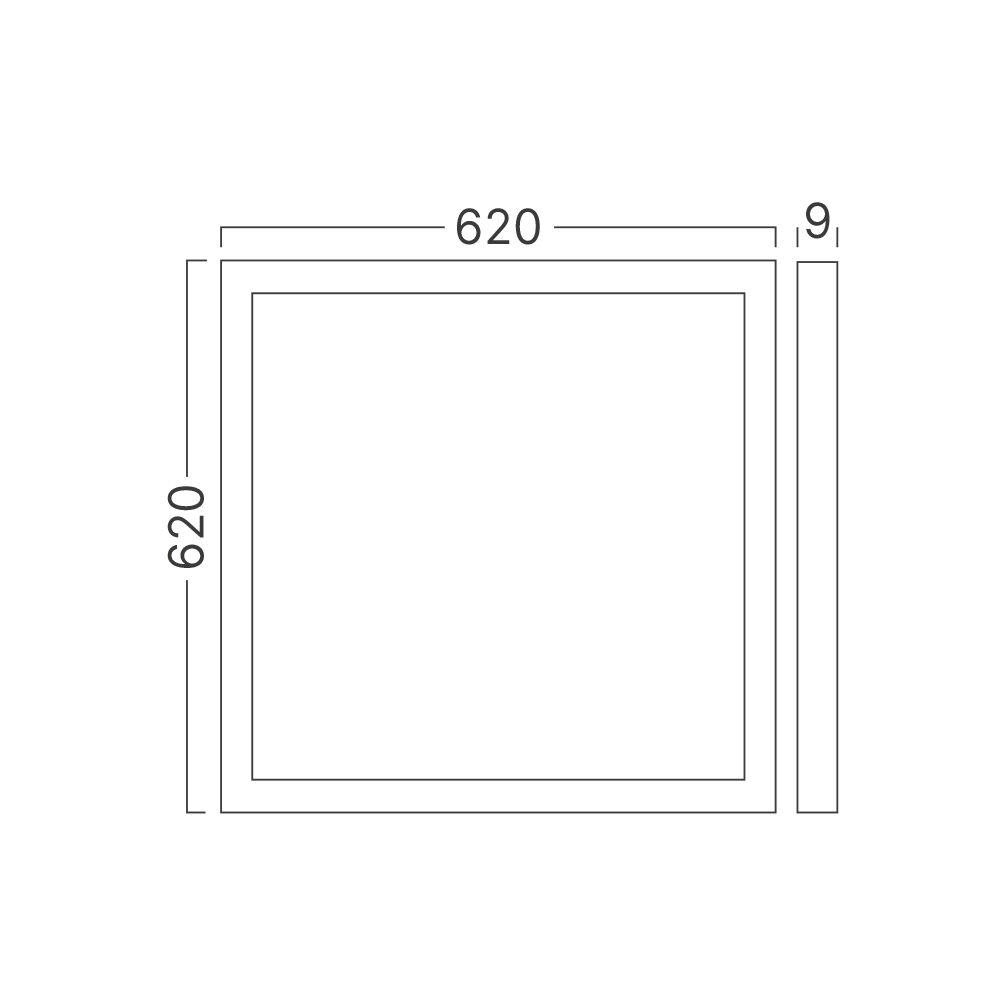

Lamp Dimensions & Weight

P. Length

620 mm

P. Width

620 mm

P. Height

11 mm

Weight

2300 gr

Package Informations

N.W.

11,50 kgs

G.W.

14,70 kgs

PCS/CTN

5 pcs

Length

690 mm

Width

165 mm

Height

715 mm

EAN

5949097738593

CE-CERTIFICATE EC-DECLERATION EMC-TEST-EBO2104161-E351 LVD-TEST-EBO2104161-E35

BP16-46280 DATASHEET
