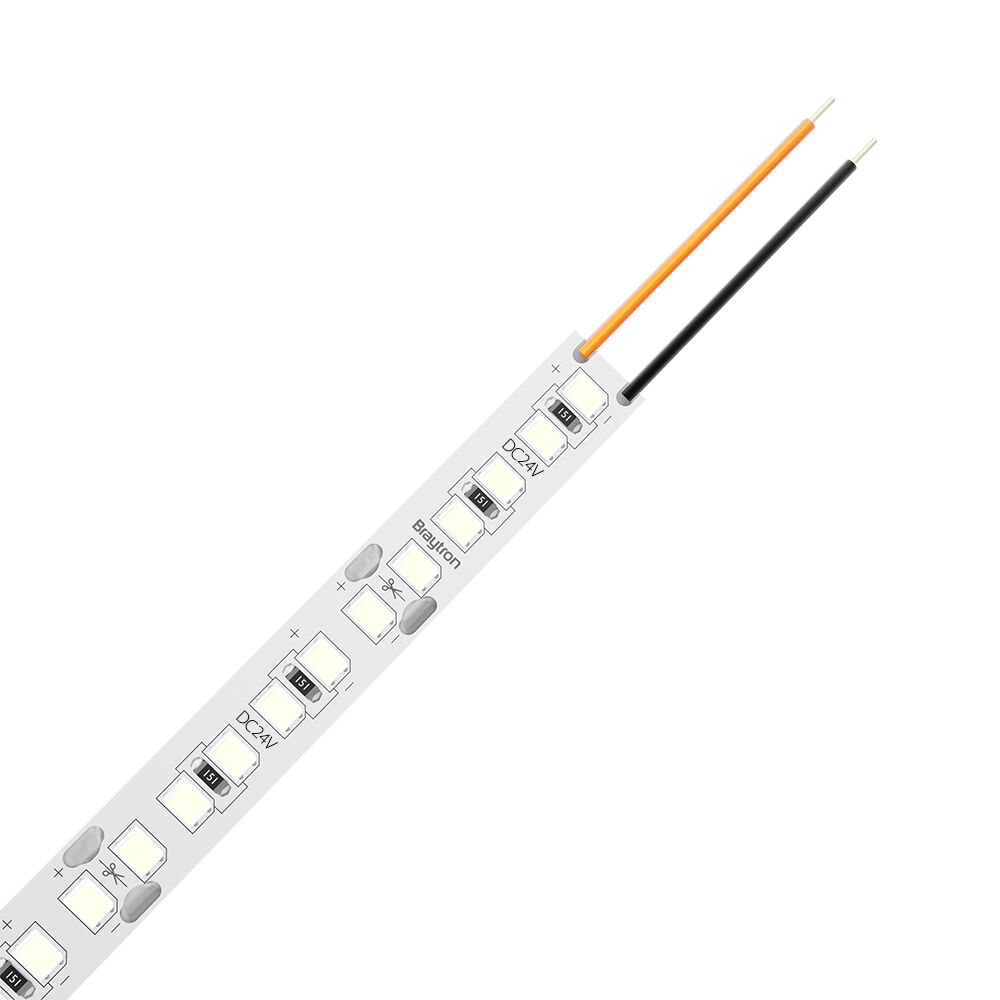

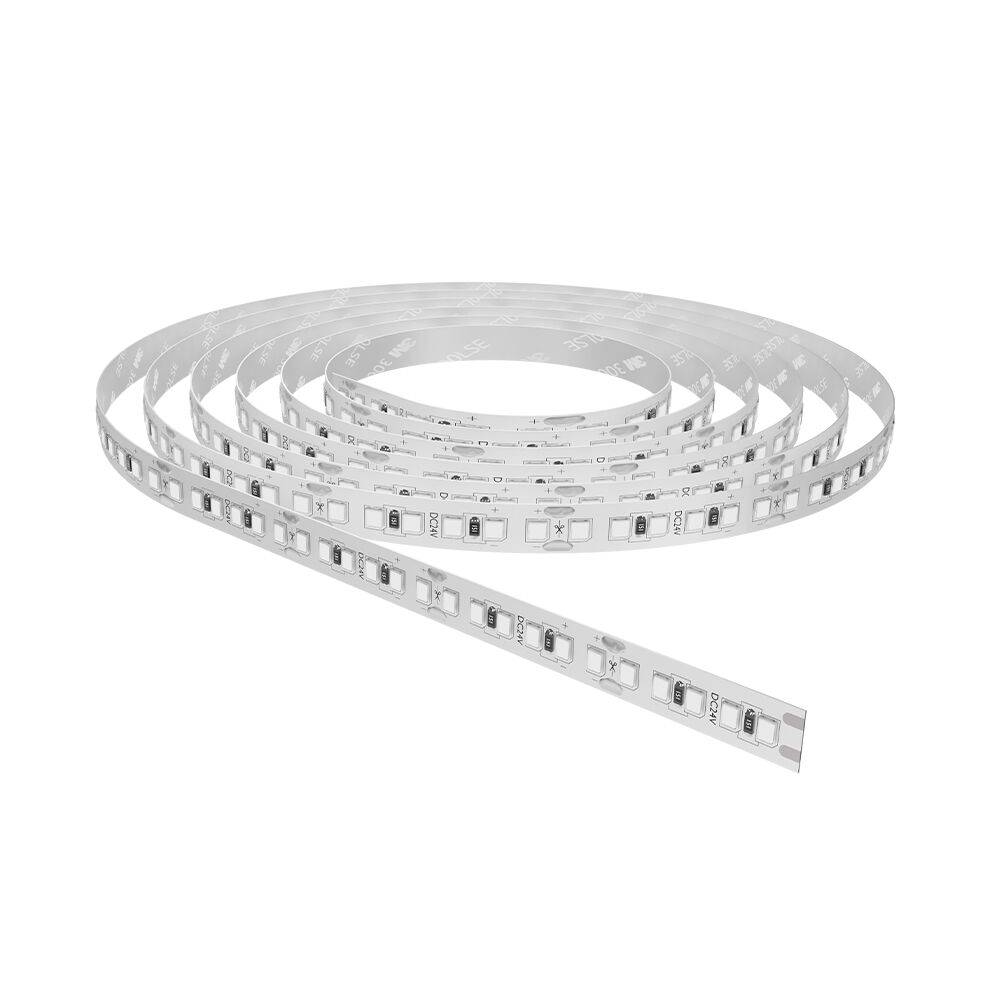

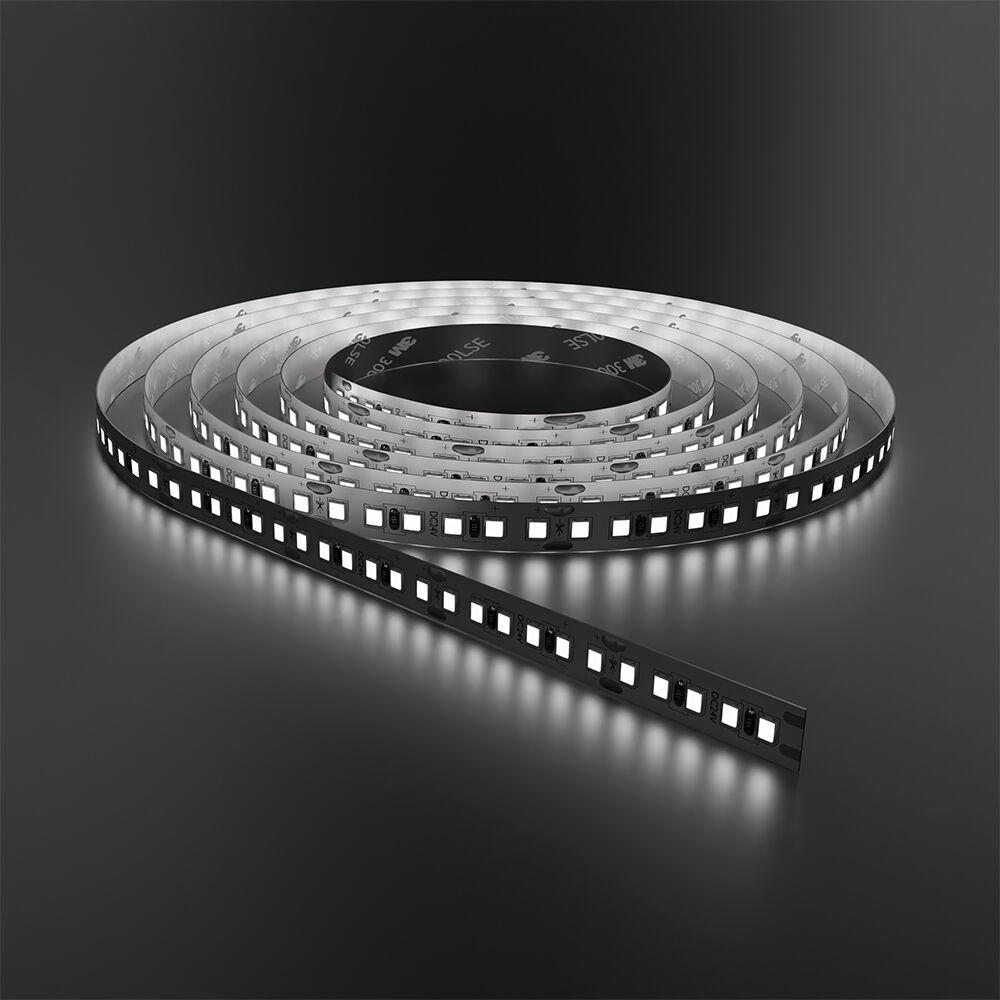

BRY-PLUSLINE-20W-240L-2835-6500K-24V-IP20-LED STRIP

BS01-01413

BRY-PLUSLINE-20W-240L-2835-6500K-24V-IP20-LED STRIP - 1

BRY-PLUSLINE-20W-240L-2835-6500K-24V-IP20-LED STRIP - 2

BRY-PLUSLINE-20W-240L-2835-6500K-24V-IP20-LED STRIP - 3

BRY-PLUSLINE-20W-240L-2835-6500K-24V-IP20-LED STRIP - 4

BRY-PLUSLINE-20W-240L-2835-6500K-24V-IP20-LED STRIP - 5

BRY-PLUSLINE-20W-240L-2835-6500K-24V-IP20-LED STRIP - 6

Family Products

General Characteristics

Model No

BS01-01413

Main Family

LED Strip

Sub Family

12V-24V LED Strip

Type

Strip

Body Color

White

Lamp Shape

Non-Directional

Light Source

LED

Warranty

5 Years

Class

CLASS III

IP

IP20

Product Characteristics

Wattage

20 w

Color Temperature

6500K

Quse Lumen

2600 lm

Color Rendering Index (CRI)

≥80

Energy Efficiency Level

E

Beam Angle

120⁰

Color Category

Cool White

Electrical Characteristics

Lifetime

30000 h

Led Quantity

240led/mt

Voltage

24V DC

Material

FPCB

Working Temperature

-20⁰C ~ +40⁰C

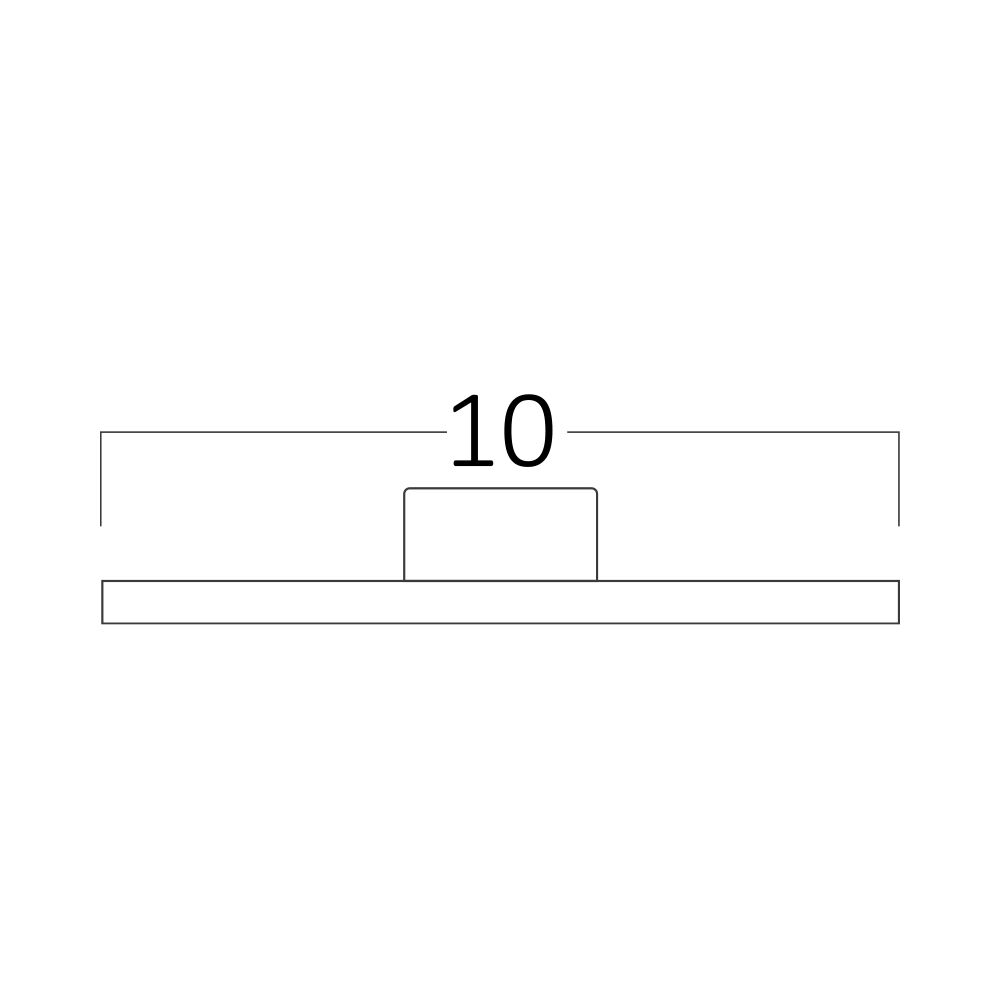

Dimensions & Weight

P. Length

10 mm

P. Width

9,5 mm

P. Height

1 mm

Weight

17 g

Package Informations

N.W.

3,4 kg

G.W.

4,6 kg

PCS/CTN

200

Length

42,5 cm

Width

23,5 cm

Height

14,5 cm

EAN

5949097740022

BS01-01413 DATASHEET
