Family Products

General Characteristics

Model No

BP04-61280

Main Family

Indoor Lighting

Sub Family

LED Small Panel

Type

Surface Panel

Body Color

White

Lamp Shape

Non-Directional

Dimmable

Not-Dimmable

Light Source

LED

Warranty

2 Years

Class

CLASS II

IP

IP40

Product Characteristics

Wattage

12 w

Color Temperature

3IN1

Quse Lumen

1120 lm

Color Rendering Index (CRI)

≥80

Energy Efficiency Level

F

Beam Angle

120⁰

Color Category

3IN1

Electrical Characteristics

Lifetime

20000 h

Voltage

220-240V

Power Factor

>0,5

Material

PC+PS

Working Temperature

-20⁰C ~ +40⁰C

Frequency

50/60Hz

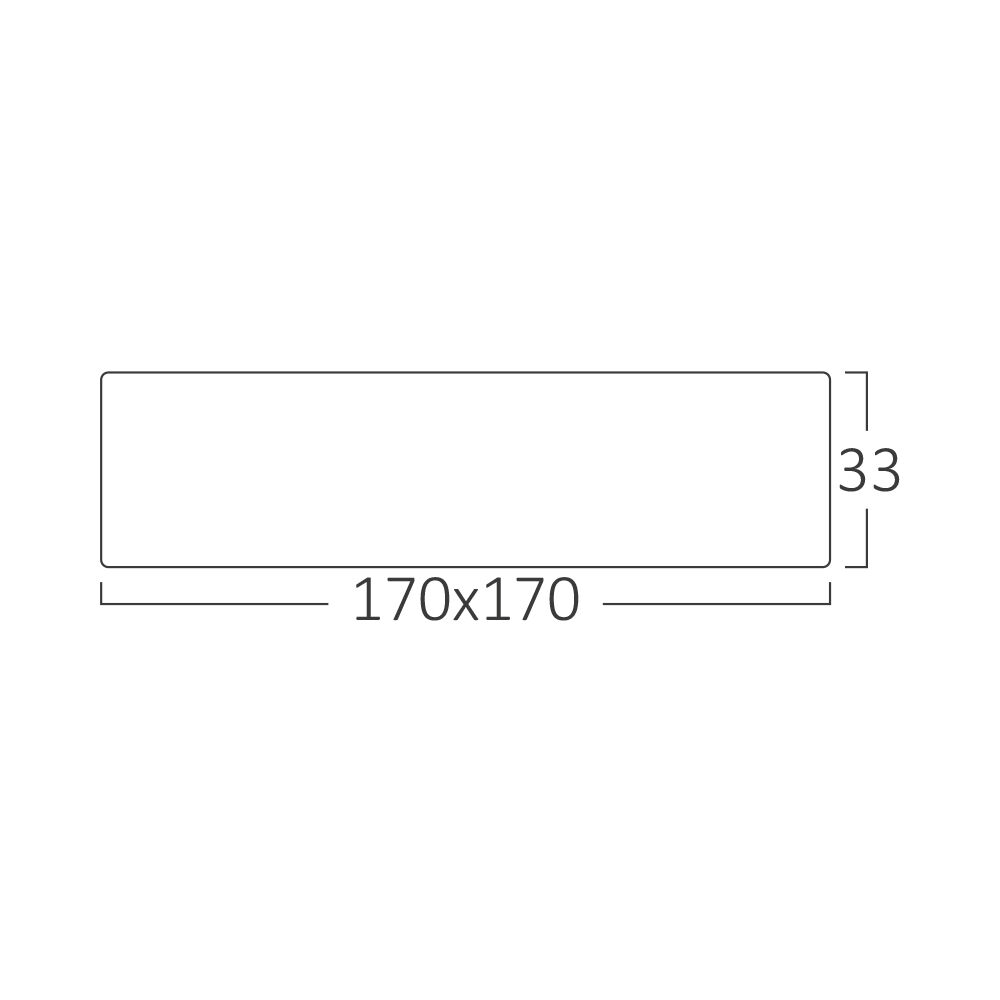

Dimensions & Weight

P. Length

170 mm

P. Width

170 mm

P. Height

33 mm

Weight

275 g

Package Informations

N.W.

5,5 kg

G.W.

7,35 kg

PCS/CTN

20

Length

44,5 cm

Width

37,5 cm

Height

20 cm

EAN

5949097743528

1-CE-CERTIFICATE 1-EC-DECLERATION 1-EMC-TEST 1-LVD-TEST
