BRY-VEKTA-D-WL.2-WHT-2x9W-3IN1-IP65-WALL LIGHT

BG38-02580

BRY-VEKTA-D-WL.2-WHT-2x9W-3IN1-IP65-WALL LIGHT - 1

BRY-VEKTA-D-WL.2-WHT-2x9W-3IN1-IP65-WALL LIGHT - 2

BRY-VEKTA-D-WL.2-WHT-2x9W-3IN1-IP65-WALL LIGHT - 3

BRY-VEKTA-D-WL.2-WHT-2x9W-3IN1-IP65-WALL LIGHT - 4

BRY-VEKTA-D-WL.2-WHT-2x9W-3IN1-IP65-WALL LIGHT - 5

BRY-VEKTA-D-WL.2-WHT-2x9W-3IN1-IP65-WALL LIGHT - 6

BRY-VEKTA-D-WL.2-WHT-2x9W-3IN1-IP65-WALL LIGHT - 7

BRY-VEKTA-D-WL.2-WHT-2x9W-3IN1-IP65-WALL LIGHT - 8

Family Products

General Characteristics

Model No

BG38-02580

Main Family

Outdoor Lighting

Sub Family

LED Wall Light

Type

Wall

Body Color

White

Lamp Shape

Directional

Dimmable

Not-Dimmable

Light Source

LED

Warranty

2 Years

Class

CLASS II

IP

IP65

IK

IK08

Product Characteristics

Wattage

2×9 w

Color Temperature

3IN1

Quse Lumen

1780 lm

Color Rendering Index (CRI)

≥80

Energy Efficiency Level

F

Beam Angle

38⁰

Color Category

3IN1

Electrical Characteristics

Lifetime

20000 h

Voltage

220-240V

Power Factor

>0,5

Material

ABS+PC

Working Temperature

-20⁰C ~ +40⁰C

Frequency

50/60Hz

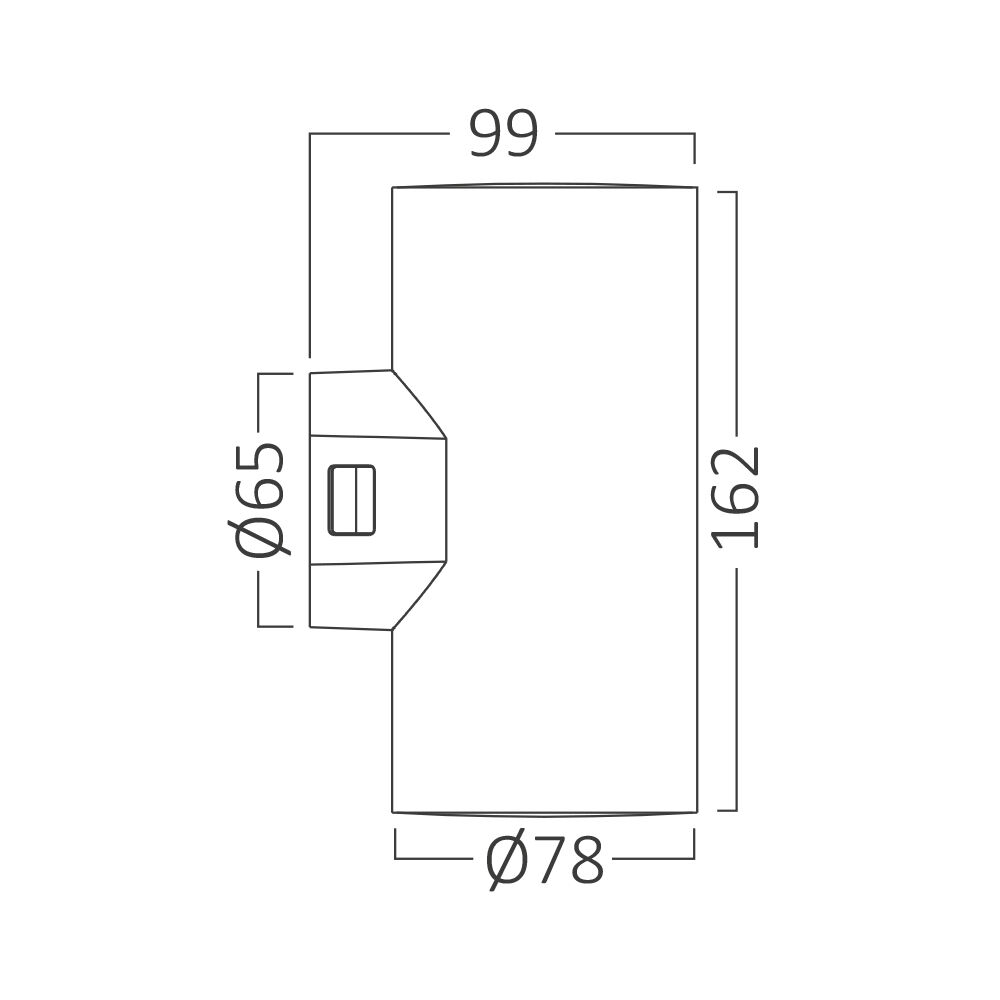

Dimensions & Weight

Diameter

78 mm

P. Length

99 mm

P. Width

99 mm

P. Height

162 mm

Weight

296 g

Package Informations

N.W.

2,95 kg

G.W.

4 kg

PCS/CTN

10

Length

45,5 cm

Width

23,8 cm

Height

9,2 cm

EAN

5949097732607

8-CE-CERTIFICATE 8-EC-DECLERATION 8-EMC-TEST-EBO2110046-E152 8-LVD-TEST-EBO2110046-E153

BG38-02580 DATASHEET
